Structural · S-JJPRD

Trash Enclosure Wall Footing and Site Utility Pad

Elements

Walls Foundations / Footings Anchors / Embeds Reinforcing

Connections

About this detail

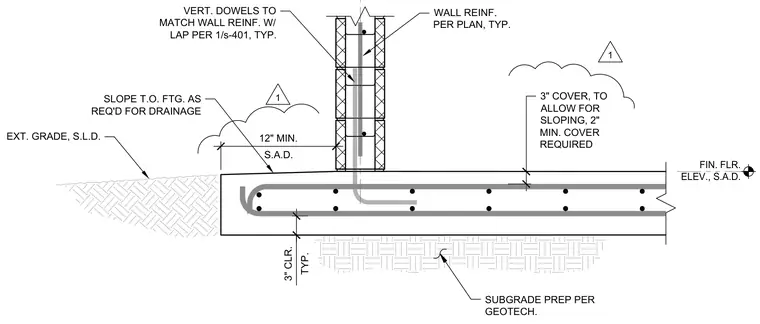

A concrete foundation footing and site utility pad support an enclosure wall. Vertical dowels tie the wall reinforcement into the concrete footing with lap splices per plan requirements. The top of the footing is sloped as required for drainage, maintaining a three-inch cover that transitions to a two-inch minimum cover. Subgrade preparation is executed per geotechnical recommendations with a standard three-inch clearance below the concrete.
