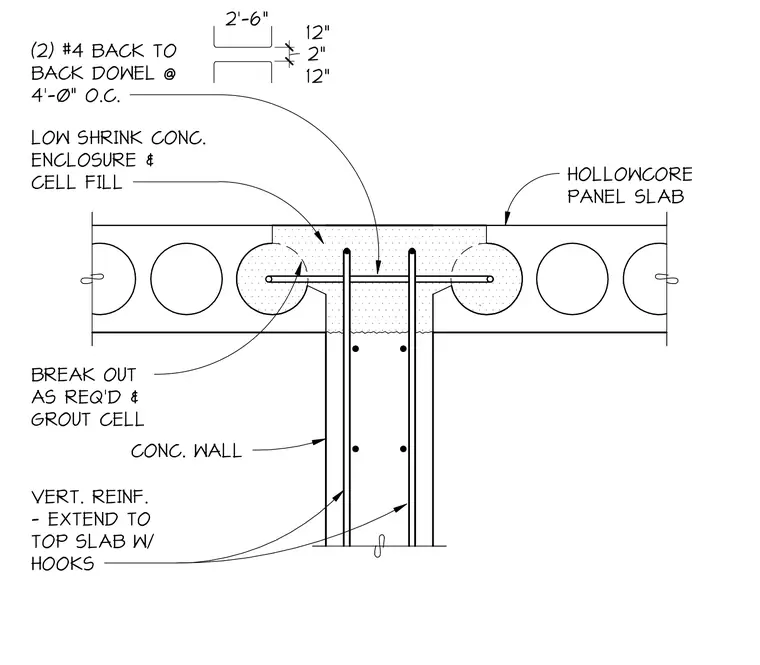

A concrete wall connects to a hollowcore panel slab using two number four back-to-back dowels spaced at four feet on center. Vertical reinforcement extends into the top slab with hooks. Cores in the hollowcore panels are broken out as required and filled with low-shrinkage concrete enclosure and cell fill.
CONC. WALL LOW SHRINK CONC. ENCLOSURE & CELL FILL HOLLOWCORE PANEL SLAB VERT. REINF. - EXTEND TO TOP SLAB W/ HOOKS BREAK OUT AS REQ'D & GROUT CELL (2) #4 BACK TO BACK DOWEL @ 4'-0" O.C. 1 5/ 8" 12" 2" 12" 2'-6"
