Structural · S-JJJ8K

Typical Interior Masonry Wall Footing

Materials

Elements

Walls Windows Floors / Slabs Foundations / Footings Stem Walls Arches

About this detail

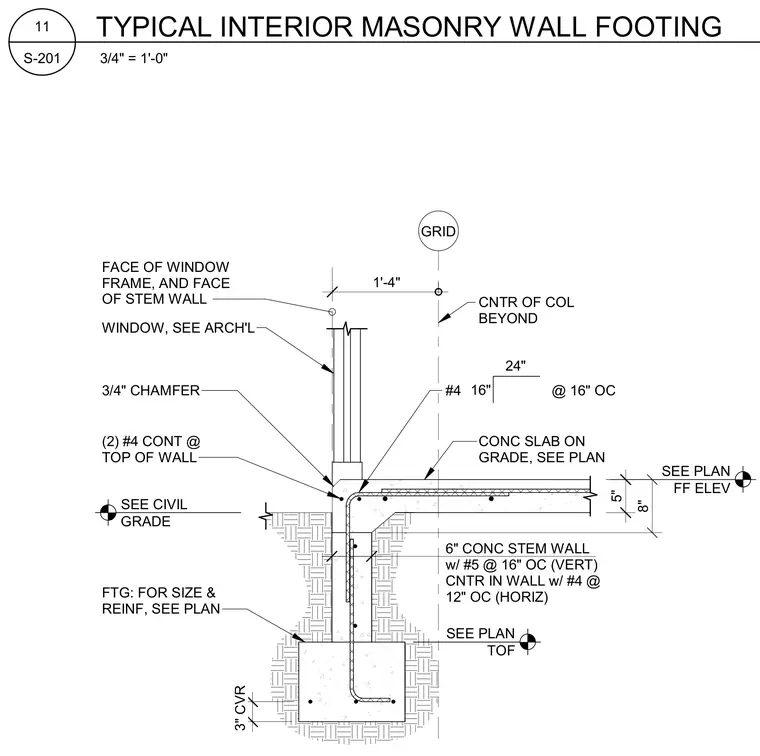

A concrete stem wall and continuous footing support an interior masonry wall assembly. The six-inch concrete stem wall is reinforced vertically with number five bars at sixteen inches on center centered in the wall, and horizontally with number four bars at twelve inches on center. Two continuous number four reinforcing bars are placed at the top of the wall with a three-quarter-inch chamfer at the interior corner. A concrete slab on grade bears against the stem wall, matching the finish floor elevation. The foundation footing size and reinforcement are sized per plan, maintaining a three-inch concrete cover.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
