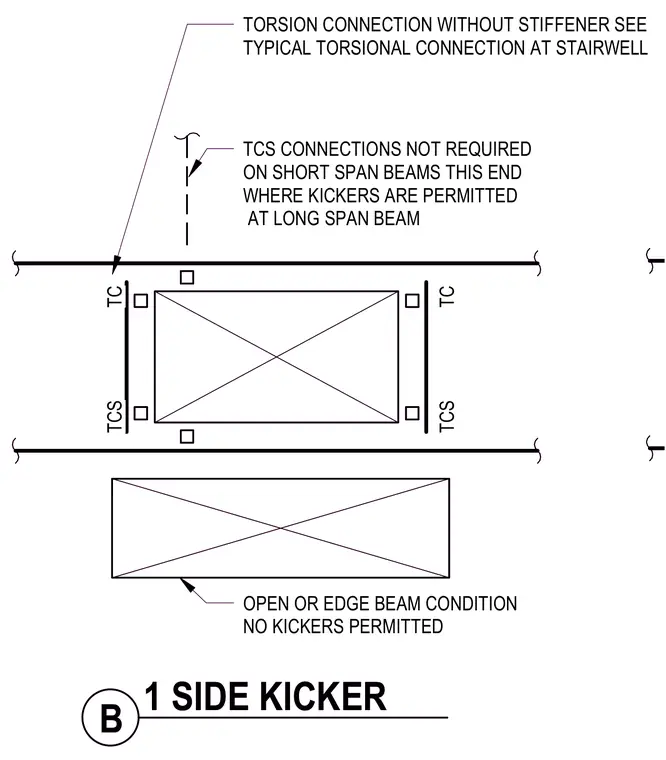

A one-side kicker connection for stairwell framing addresses torsional considerations. A torsion connection without stiffeners is specified for specific conditions, with reference to the typical torsional connection detail at the stairwell. Kickers are omitted at open or edge beam conditions. Connections are not required on short-span beams at the end where kickers are permitted on long-span beams.
TCS TC TCS TC OPEN OR EDGE BEAM CONDITION NO KICKERS PERMITTED TORSION CONNECTION WITHOUT STIFFENER SEE TYPICAL TORSIONAL CONNECTION AT STAIRWELL TCS CONNECTIONS NOT REQUIRED ON SHORT SPAN BEAMS THIS END WHERE KICKERS ARE PERMITTED AT LONG SPAN BEAM B 1 SIDE KICKER TCS TC TCS TC OPEN OR EDGE BEAM CONDITION NO KICKERS PERMITTED TORSION CONNECTION WITHOUT STIFFENER SEE TYPICAL TORSIONAL CONNECTION AT STAIRWELL TCS CONNECTIONS NOT REQUIRED ON SHORT SPAN BEAMS THIS END WHERE KICKERS ARE PERMITTED AT LONG SPAN BEAM B 1 SIDE KICKER
