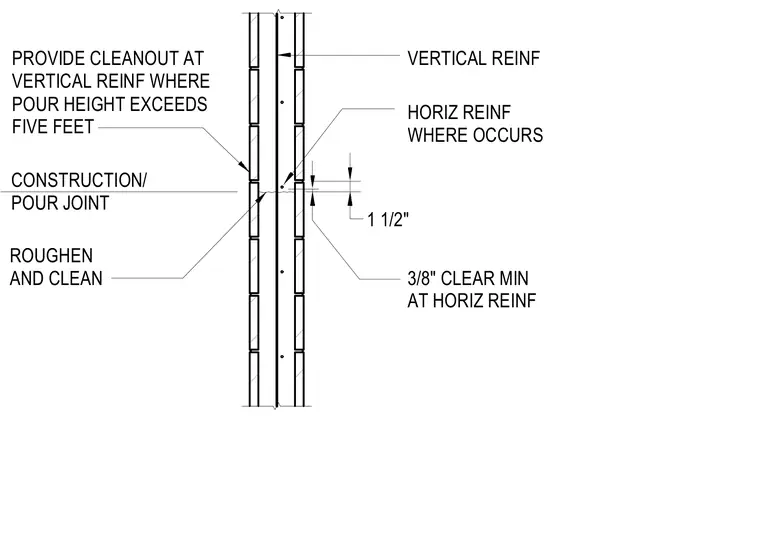

A horizontal construction pour joint in a concrete wall features a one-and-a-half-inch offset. The interface requires roughening and cleaning before subsequent placement. Vertical reinforcement continues through the joint, while horizontal reinforcement is placed where required with a three-eighths-inch minimum clearance. A cleanout is required at the vertical reinforcement when the pour height exceeds five feet.
1 1/2" CONSTRUCTION/ POUR JOINT PROVIDE CLEANOUT AT VERTICAL REINF WHERE POUR HEIGHT EXCEEDS FIVE FEET ROUGHEN AND CLEAN 3/8" CLEAR MIN AT HORIZ REINF HORIZ REINF WHERE OCCURS VERTICAL REINF
