Cold-formed steel studs connect to a top track with a three-quarter-inch vertical deflection gap unless noted otherwise. Two number eight sheet metal screws fasten each stud flange centered within the slotted track connection. The top track attaches to the overhead structure according to typical details.

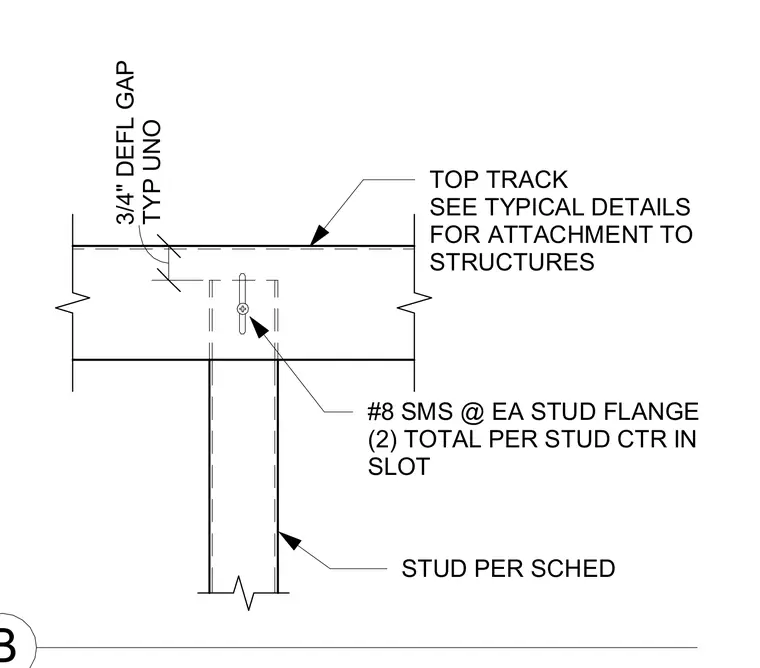

STUD PER SCHED TOP TRACK SEE TYPICAL DETAILS FOR ATTACHMENT TO STRUCTURES 3/4" DEFL GAP TYP UNO #8 SMS @ EA STUD FLANGE (2) TOTAL PER STUD CTR IN SLOT
