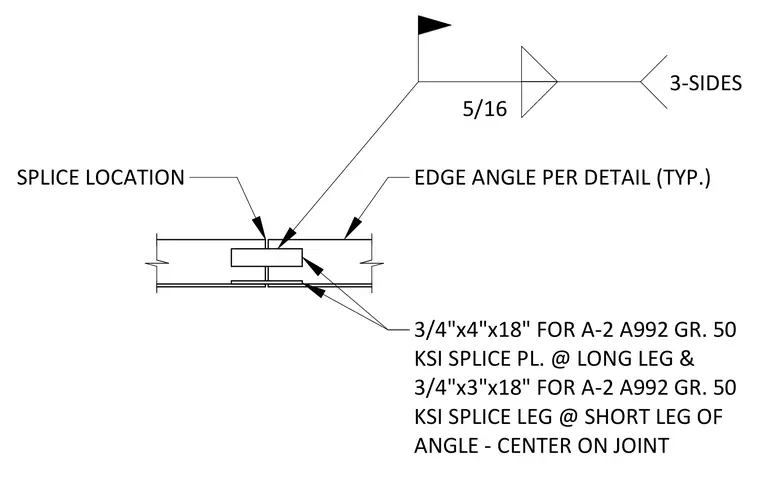

This assembly provides a structural splice for steel edge angles at a joint location. The connection utilizes a 3/4 inch by 4 inch by 18 inch ASTM A992 Grade 50 steel splice plate at the long leg and a 3/4 inch by 3 inch by 18 inch ASTM A992 Grade 50 steel splice plate at the short leg of the angle. These plates are centered on the joint and secured with 5/16 inch fillet welds applied to three sides of the plates.
Text on the drawing
EDGE ANGLE PER DETAIL (TYP.) SPLICE LOCATION EDGE ANGLE PER DETAIL (TYP.) SPLICE LOCATION 3/4"x4"x18" FOR A-2 A992 GR. 50 KSI SPLICE PL. @ LONG LEG & 3/4"x3"x18" FOR A-2 A992 GR. 50 KSI SPLICE LEG @ SHORT LEG OF ANGLE - CENTER ON JOINT OPTION 1 OPTION 2 5/16 3-SIDES C.J.P.
