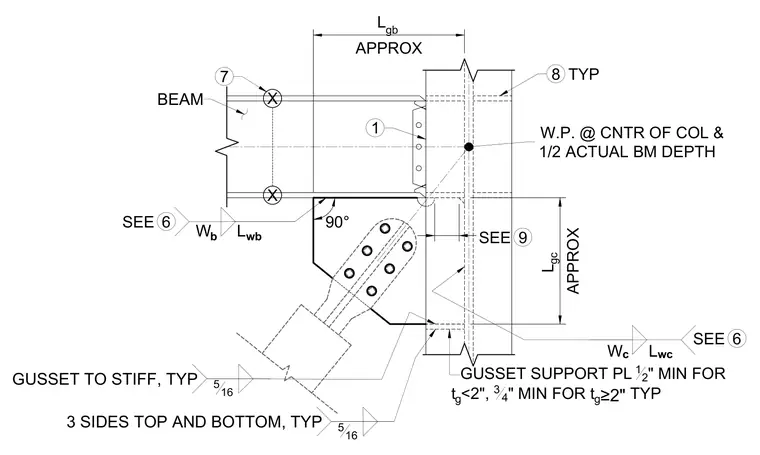

A structural steel brace connects to a column and intersecting beam via a gusset plate welded to a gusset support plate. The gusset plate is fastened to the brace with a bolted connection and welded to stiffeners along three sides with five-sixteenths-inch fillet welds. A gusset support plate measuring one-half-inch minimum for plates under two inches or three-quarters-inch minimum for plates two inches and greater is welded to the column. The work point is located at the center of the column and one-half of the actual beam depth.
L gc APPROX L gb APPROX BEAM 90° W b 6 SEE W.P. @ CNTR OF COL & 1/2 ACTUAL BM DEPTH X X 7 GUSSET TO STIFF, TYP 516 6 SEE W c GUSSET SUPPORT PL 12 " MIN FOR t g <2", 3 4 " MIN FOR t g ≥2" TYP 3 SIDES TOP AND BOTTOM, TYP 516 8 TYP L wb L wc 1 9 SEE
