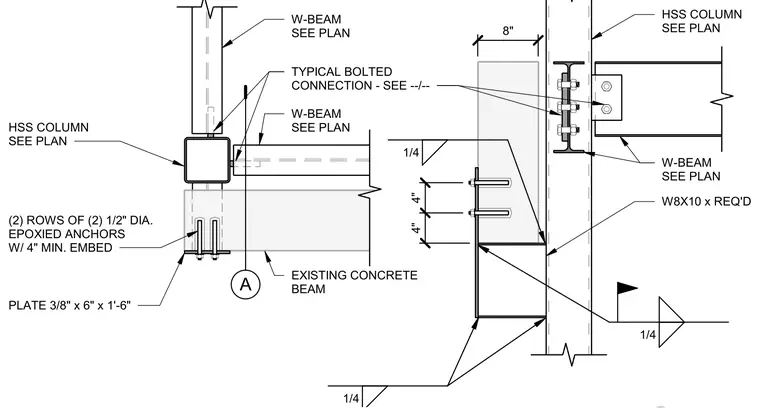

An HSS column bears onto an existing concrete beam via a 3/8-inch by 6-inch by 1-foot-6-inch embed plate secured with two rows of two 1/2-inch-diameter epoxied anchors having a 4-inch minimum embedment. Wide-flange beams frame into the structural assembly using typical bolted connections and welded attachments. A W8X10 shape is welded to the column with a quarter-inch fillet weld.
A 4" 4" 8" W-BEAM SEE PLAN TYPICAL BOLTED CONNECTION - SEE --/-- W-BEAM SEE PLAN EXISTING CONCRETE BEAM (2) ROWS OF (2) 1/2" DIA. EPOXIED ANCHORS W/ 4" MIN. EMBED PLATE 3/8" x 6" x 1'-6" HSS COLUMN SEE PLAN W8X10 x REQ'D HSS COLUMN SEE PLAN W-BEAM SEE PLAN 1/4 1/4 1/4
