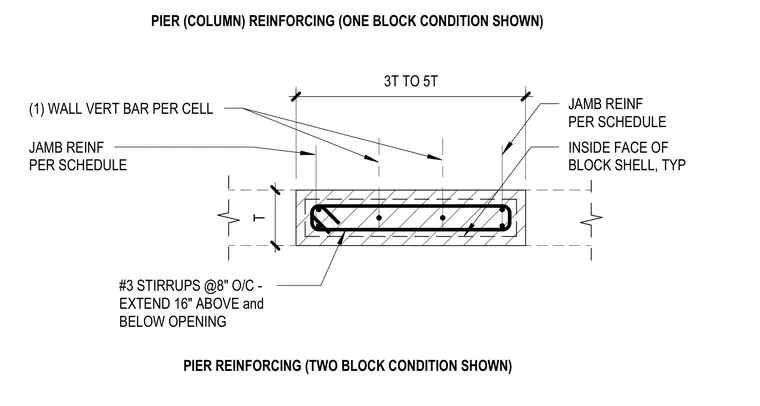

A concrete masonry unit pier reinforcing configuration with one-block and two-block conditions shown. Wall vertical reinforcing bars are placed per cell alongside jamb reinforcing sized per schedule. Number 3 stirrups are spaced at eight inches on center and extend sixteen inches above and below the wall opening. Vertical reinforcing bars are positioned inside the face of the block shell typically.
(1) WALL VERT BAR PER CELL #3 STIRRUPS @8" O/C - EXTEND 16" ABOVE and BELOW OPENING PIER (COLUMN) REINFORCING (ONE BLOCK CONDITION SHOWN) PIER REINFORCING (TWO BLOCK CONDITION SHOWN) 3T TO 5T JAMB REINF PER SCHEDULE JAMB REINF PER SCHEDULE T INSIDE FACE OF BLOCK SHELL, TYP
