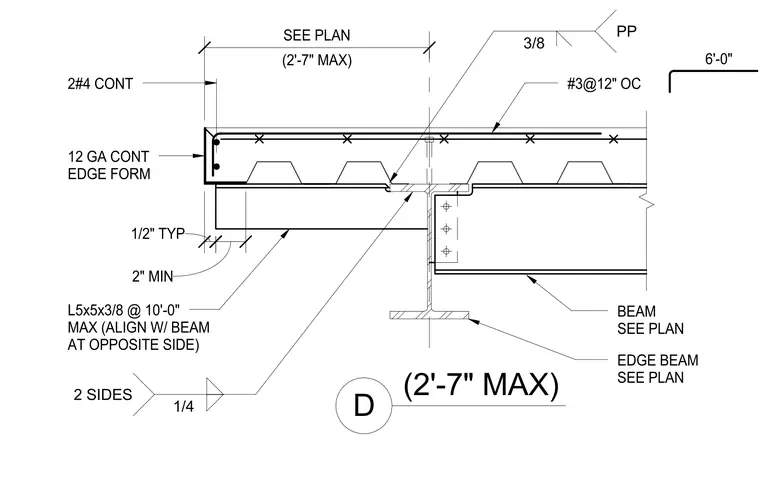

A structural concrete slab on metal deck bears on structural steel framing at the building perimeter. A continuous L5x5x3/8 angle spaced at a maximum of ten feet on center aligns with the beam on the opposite side and connects with a quarter-inch fillet weld on two sides. The concrete slab features continuous number four reinforcing bars, number three reinforcing bars at twelve inches on center, and a twelve-gauge continuous edge form. The edge beam and interior beam sizes are sized per plan with a two-inch minimum clearance.
(2'-7" MAX) D 6'-0" 2#4 CONT L5x5x3/8 @ 10'-0" MAX (ALIGN W/ BEAM AT OPPOSITE SIDE) 12 GA CONT EDGE FORM EDGE BEAM SEE PLAN BEAM SEE PLAN #3@12" OC (2'-7" MAX) SEE PLAN 3/8 PP 1/2" TYP 1/4 2 SIDES 2" MIN
