A davit socket pedestal is welded atop a 7/8-inch thick column cap plate centered on a structural steel column. Framing beams connect to the column web or flanges using shear tab connections. Half-inch by ten-inch stiffener plates are welded to each side of the column web, omitted where shear tabs occur.

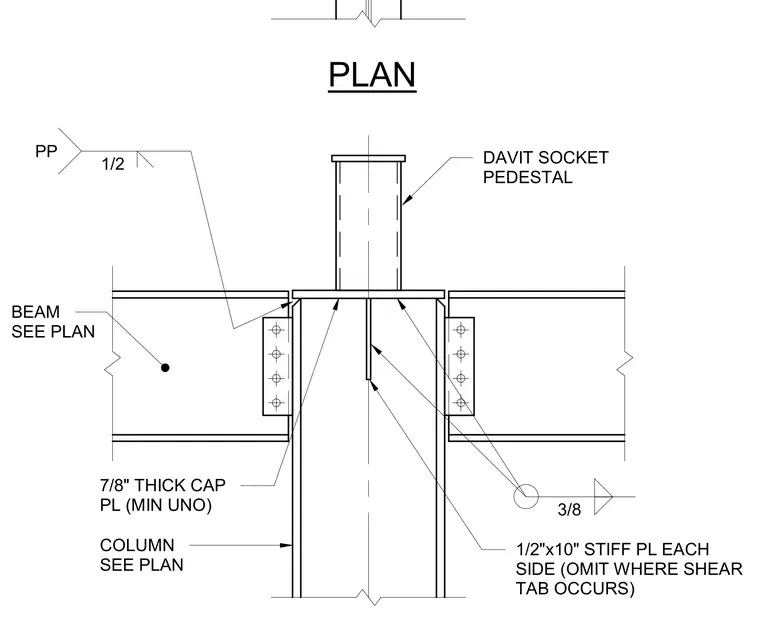

PLAN 7/8" THICK CAP PL (MIN UNO) COLUMN SEE PLAN BEAM SEE PLAN 1/2"x10" STIFF PL EACH SIDE (OMIT WHERE SHEAR TAB OCCURS) DAVIT SOCKET PEDESTAL 3/8 1/2 PP
