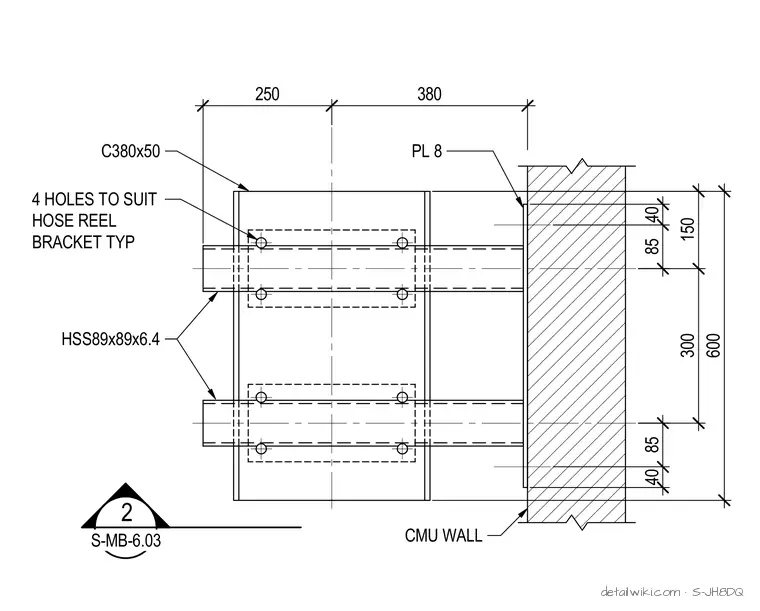

A structural steel hose reel bracket assembly connects to a concrete masonry unit wall using an 8 millimeter thick base plate. Two hollow structural section members, sized at 89 by 89 by 6.4 millimeters, extend horizontally from the base plate to a channel section member designated as C380x50. The channel member features four typical holes to suit the hose reel bracket. Dimensioned layout spaces the horizontal hollow structural sections at 300 millimeters on center with vertical edge distances of 150 and 85 millimeters.
380 250 600 300 150 CMU WALL HSS89x89x6.4 4 HOLES TO SUIT HOSE REEL BRACKET TYP C380x50 85 40 40 85 PL 8 2 S-MB-6.03
