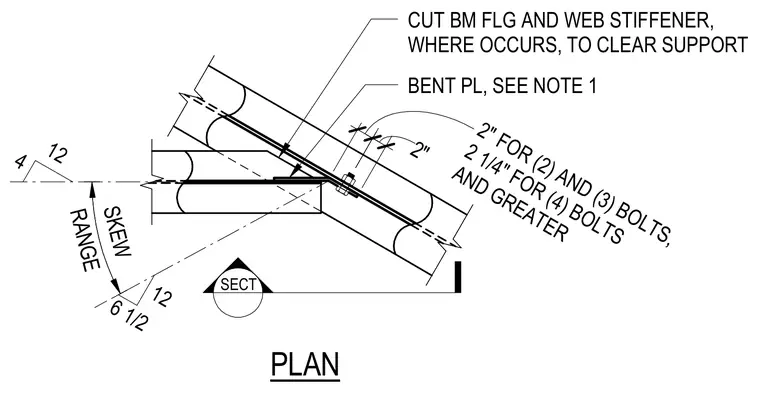

A skewed steel beam frames into a column flange using a bent plate connection sized per plan notes. The beam flange and web stiffener are cut where necessary to clear the support. Edge distances for the bolted connection measure 2 inches for two and three bolts, and 2-1/4 inches for four or more bolts.
SECT 2" BENT PL, SEE NOTE 1 PLAN RANGE SKEW 6 1/2 12 4 12 2 1/4 " CUT BM FLG AND WEB STIFFENER, WHERE OCCURS, TO CLEAR SUPPORT 2" FOR (2) AND (3) BOLTS, 2 1/4" FOR (4) BOLTS AND GREATER
