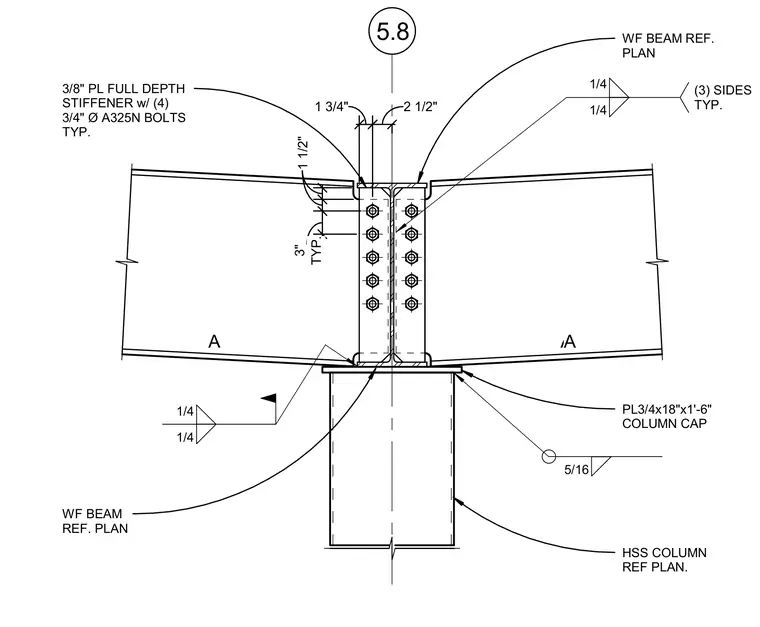

An HSS column supports two wide-flange beams via a 3/4-inch by 18-inch by 1-foot-6-inch column cap plate welded with a 5/16-inch fillet weld. Full-depth 3/8-inch stiffener plates are welded to the beams with 1/4-inch fillet welds on three sides typically. Four 3/4-inch diameter A325N bolts connect the beam webs at a 3-inch typical vertical spacing with 1 1/2-inch and 1 3/4-inch edge clearances. Wide-flange beams are positioned per reference plans.
WF BEAM REF. PLAN WF BEAM REF. PLAN HSS COLUMN REF PLAN. 5/16 1/4 1/4 (3) SIDES TYP. 1/4 1/4 A A TYP. 3" 1 1/2" 1 1/2" 5.8 1 3/4" 2 1/2" A PL3/4x18"x1'-6" COLUMN CAP 3/8" PL FULL DEPTH STIFFENER w/ (4) 3/4" Ø A325N BOLTS TYP.
