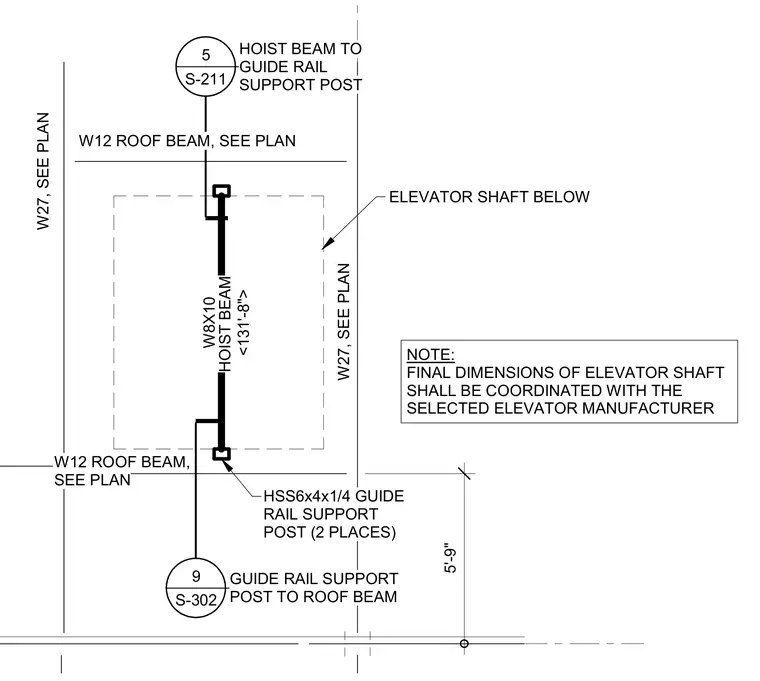

This structural plan detail shows the framing layout for a roof elevator shaft including a W8X10 hoist beam spanning between W12 roof beams and W27 beams sized per plan. Two HSS 6x4x1/4 hollow structural section guide rail support posts are positioned at the shaft boundaries. A note specifies that final dimensions of the elevator shaft must be coordinated with the selected elevator manufacturer.
5 S-211 _______________ 9 S-302 _______________ HOIST BEAM NOTE: FINAL DIMENSIONS OF ELEVATOR SHAFT SHALL BE COORDINATED WITH THE SELECTED ELEVATOR MANUFACTURER HSS6x4x1/4 GUIDE RAIL SUPPORT POST (2 PLACES) 5'-9" ELEVATOR SHAFT BELOW W27, SEE PLAN W27, SEE PLAN W12 ROOF BEAM, SEE PLAN W12 ROOF BEAM, SEE PLAN W8X10 <131'-8"> HOIST BEAM TO GUIDE RAIL SUPPORT POST GUIDE RAIL SUPPORT POST TO ROOF BEAM
