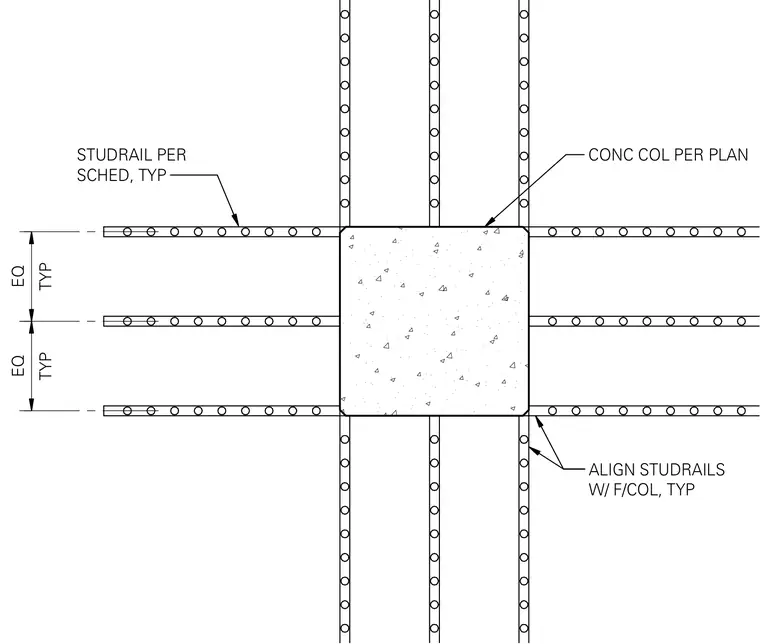

Studrails are positioned orthogonally around the concrete interior column per plan and aligned with the column faces. Multiple studrail rows are spaced evenly on each side of the column according to the structural schedule.
CONC COL PER PLAN ALIGN STUDRAILS W/ F/COL, TYP TYP EQ TYP EQ STUDRAIL PER SCHED, TYP
