Structural · S-JGTGY

Beam To Column Connection Details

Materials

Metal (misc.)

Elements

Columns Beams Roofs Connections / Plates

Connections

Beam-to-Column Beam-to-Beam Welded Connection

About this detail

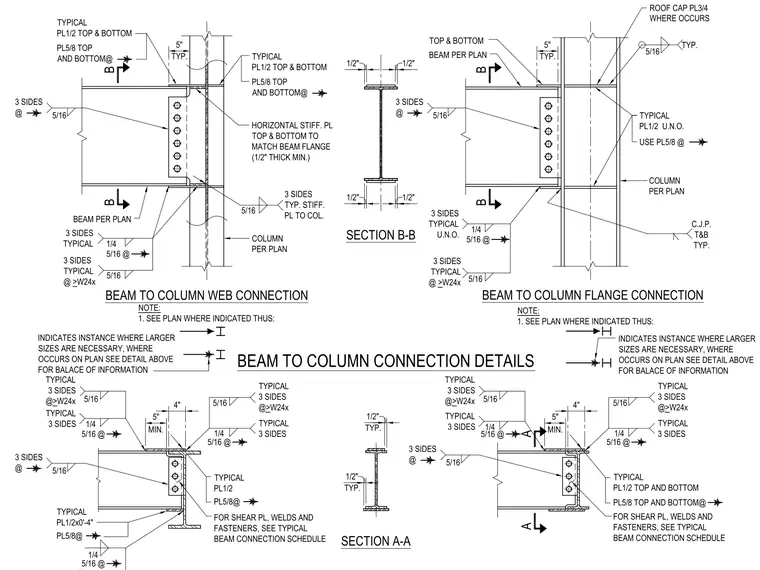

These structural steel details illustrate beam-to-column web and flange connections with typical half-inch and five-eighths-inch top and bottom stiffener plates matched to the beam flanges. Section A-A and Section B-B show welded shear plates connected to the column profile, with weld sizes specified as quarter-inch and five-sixteenths-inch fillet welds on three sides. Horizontal stiffener plates are welded to the column to match the beam flange, with a minimum thickness of half an inch. Complete-joint-penetration groove welds are specified at the top and bottom flanges where indicated, alongside typical beam connection schedules for shear plates, welds, and fasteners.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
