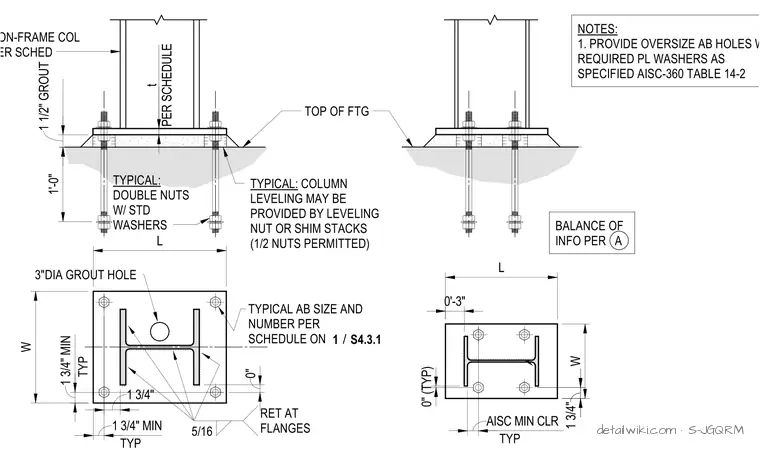

Typical non-frame column base plate connections anchored to a concrete footing. The steel column sits atop a base plate of thickness per schedule, welded at the flanges with five-sixteenths inch fillet welds and featuring a three-inch diameter grout hole. The assembly includes anchor bolts sized per schedule, detailed with double nuts and standard washers, and set with one and three-quarters inch minimum edge distances. Leveling is achieved using either a leveling nut or shim stacks, with one-half nuts permitted, resting upon a one and one-half inch grout pad above the top of the footing. Oversize anchor bolt holes are provided with required plate washers per AISC-360 Table 14-2.
TYP W L AISC MIN CLR TOP OF FTG BALANCE OF INFO PER A NOTES: 1. PROVIDE OVERSIZE AB HOLES W/ REQUIRED PL WASHERS AS SPECIFIED AISC-360 TABLE 14-2 0'-3" 1 3/4" 0" (TYP) TYP TYPICAL: DOUBLE NUTS W/ STD WASHERS TYPICAL: COLUMN LEVELING MAY BE PROVIDED BY LEVELING NUT OR SHIM STACKS (1/2 NUTS PERMITTED) 3"DIA GROUT HOLE TYPICAL AB SIZE AND NUMBER PER SCHEDULE ON RET AT FLANGES 5/16 W L 1 1/2" GROUT 1'-0" PER SCHEDULE t 1 3/4" MIN 1 3/4" MIN NON-FRAME COL PER SCHED 0" 1 3/4" / 1 S4.3.1
