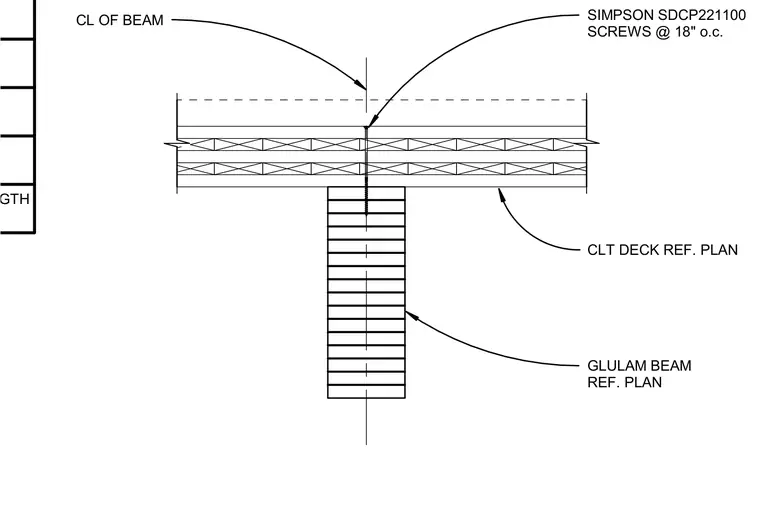

A cross-laminated timber deck bears directly on a glulam beam centered along the beam centerline. Simpson SDCP221100 structural screws fasten the CLT deck to the glulam beam at eighteen inches on center. Lengths are as noted for end length.
CL OF BEAM GLULAM BEAM REF. PLAN SIMPSON SDCP221100 SCREWS @ 18" o.c. CLT DECK REF. PLAN LENGTHS NOTED ARE END LENGTH
