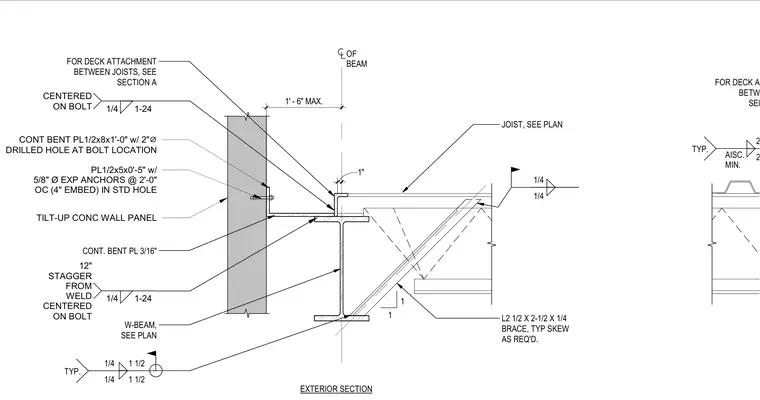

An open web steel joist bears onto a wide-flange W-beam supported alongside a tilt-up concrete wall panel. A continuous 3/16-inch bent plate ties the W-beam and joist bearing assembly back to an embedded 1/2-inch by 5-inch by 0-foot 5-inch steel plate fastened with 5/8-inch diameter expansion anchors at 2 feet on center with 4 inches of embedment in standard holes. A continuous 1/2-inch by 8-inch by 1-foot 0-inch bent plate features a 2-inch diameter drilled hole at the bolt location. An L2 1/2 by 2-1/2 by 1/4 angle brace is welded with 1/4-inch fillet welds and skewed as required. Additional connections utilize 1/4-inch fillet welds spaced at 1-24 stagger from the weld centered on the bolt.
EXTERIOR SECTION FOR DECK ATTACHMENT BETWEEN JOISTS, SEE SECTION A 1 1 JOIST, SEE PLAN L2 1/2 X 2-1/2 X 1/4 BRACE, TYP SKEW AS REQ'D. CONT. BENT PL 3/16" W-BEAM, SEE PLAN FOR DECK ATTACHMENT BETWEEN JOISTS, SEE SECTION A 1' - 6" MAX. 1" 2 2 TYP. AISC. MIN. OF BEAM 1 1/2 1/4 1 1/2 1/4 TYP. 1/4 1/4 PL1/2x5x0'-5" w/ 5/8" Ø EXP ANCHORS @ 2'-0" OC (4" EMBED) IN STD HOLE CONT BENT PL1/2x8x1'-0" w/ 2" ⌀ DRILLED HOLE AT BOLT LOCATION 1/4 12" STAGGER FROM WELD CENTERED ON BOLT 1-24 1/4 CENTERED ON BOLT 1-24 TILT-UP CONC WALL PANEL
