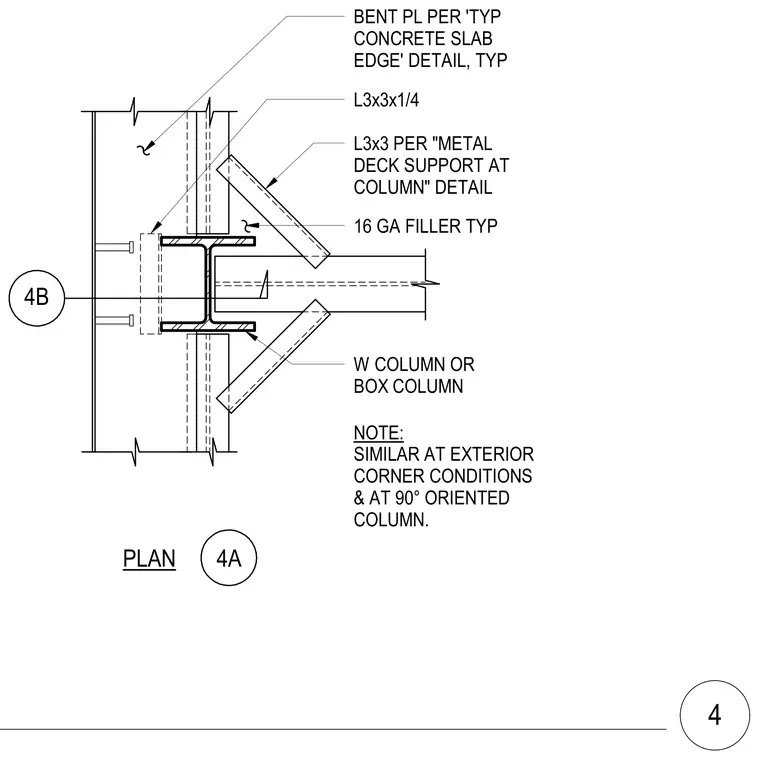

Metal deck support connects at a wide flange or box steel column. Angle sections L3x3x1/4 attach to the column web or flange alongside a bent plate per typical concrete slab edge details. An additional L3x3 angle frames the metal deck with a 16-gauge filler plate. This condition is typical at exterior corner conditions and at ninety-degree oriented columns.
PLAN 4B 16 GA FILLER TYP L3x3 PER "METAL DECK SUPPORT AT COLUMN" DETAIL L3x3x1/4 BENT PL PER 'TYP CONCRETE SLAB EDGE' DETAIL, TYP NOTE: SIMILAR AT EXTERIOR CORNER CONDITIONS & AT 90° ORIENTED COLUMN. W COLUMN OR BOX COLUMN 4A 4
