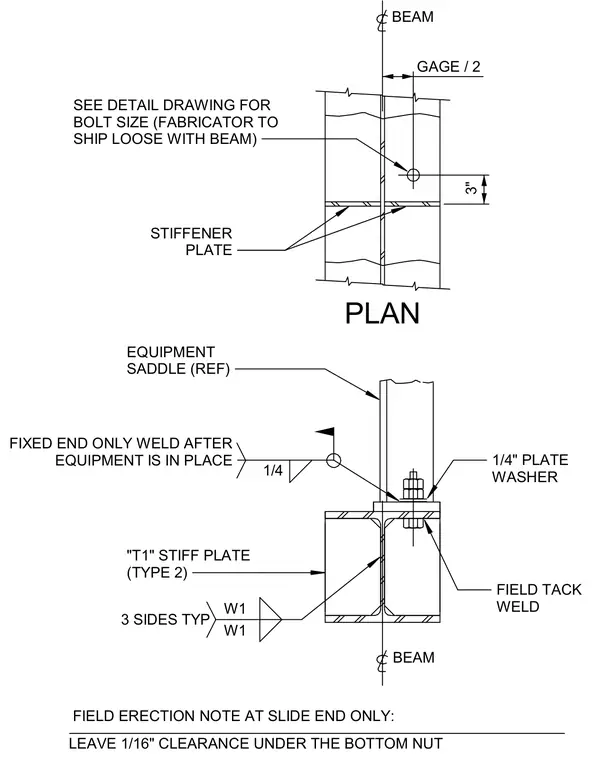

An equipment saddle connects to a structural steel beam flange using a bolted connection with a one-quarter inch plate washer. Stiffener plates are field tack welded on three sides to the beam web and flanges. The fixed end is welded only after the equipment is in place. At the slide end, a one-sixteenth inch clearance is maintained under the bottom nut per field erection notes, with bolt sizes shipped loose by the fabricator.
FIELD TACK WELD W1 W1 3 SIDES TYP "T1" STIFF PLATE (TYPE 2) FIXED END ONLY WELD AFTER EQUIPMENT IS IN PLACE 1/4 1/4" PLATE WASHER EQUIPMENT SADDLE (REF) BEAM FIELD ERECTION NOTE AT SLIDE END ONLY: LEAVE 1/16" CLEARANCE UNDER THE BOTTOM NUT SEE DETAIL DRAWING FOR BOLT SIZE (FABRICATOR TO SHIP LOOSE WITH BEAM) BEAM GAGE / 2 STIFFENER PLATE PLAN 3"
