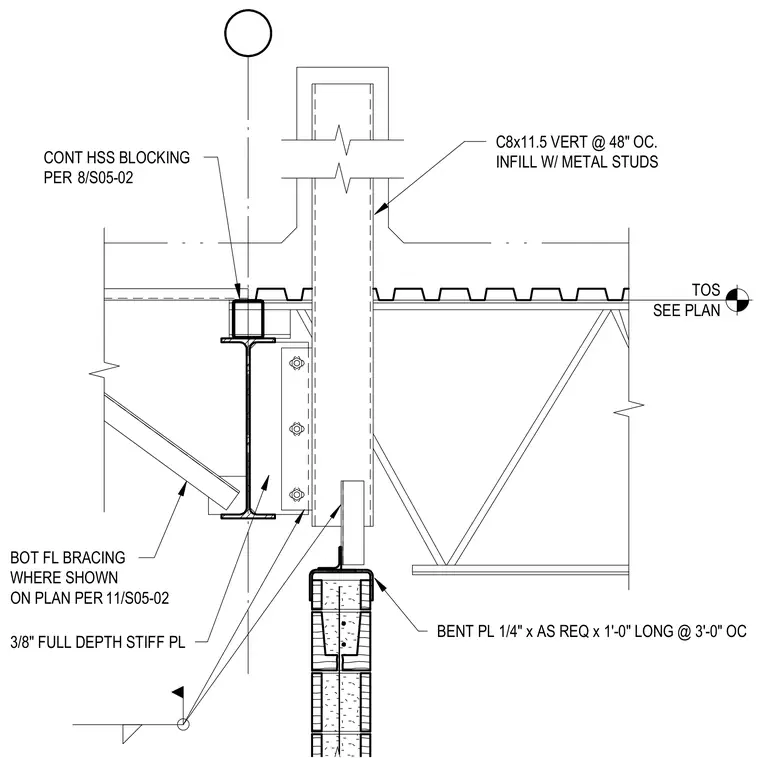

Continuous HSS blocking sits atop the structural steel beam per detail reference 8/S05-02, paired with a three-eighths-inch full-depth stiffener plate. Vertical C8x11.5 channel studs spaced at forty-eight inches on center provide infill with metal studs. Bottom flange bracing is installed where shown on the plan per detail reference 11/S05-02. A quarter-inch bent plate measuring as required by one foot long is spaced at three feet on center.
BENT PL 1/4" x AS REQ x 1'-0" LONG @ 3'-0" OC 3/8" FULL DEPTH STIFF PL CONT HSS BLOCKING PER 8/S05-02 TOS SEE PLAN C8x11.5 VERT @ 48" OC. INFILL W/ METAL STUDS BOT FL BRACING WHERE SHOWN ON PLAN PER 11/S05-02
