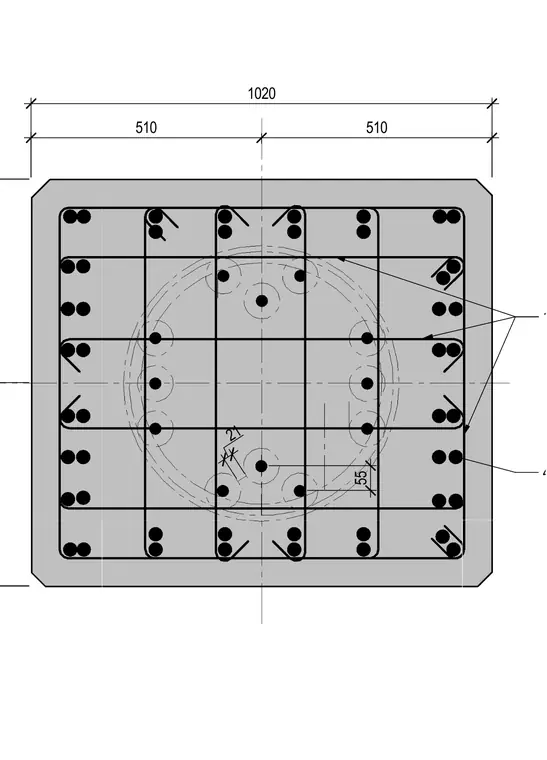

The detail illustrates the reinforcement layout for a rectangular reinforced concrete column measuring 1020 mm wide. It features an internal circular element, likely a steel pipe or embedded core, surrounded by a comprehensive grid of longitudinal reinforcing bars and internal ties or stirrups with hook anchorages. Dimension lines indicate symmetrical spacing and clear cover requirements.
Text on the drawing
21 55 1020 510 510 15M@250 TIES 48-30M BARS
