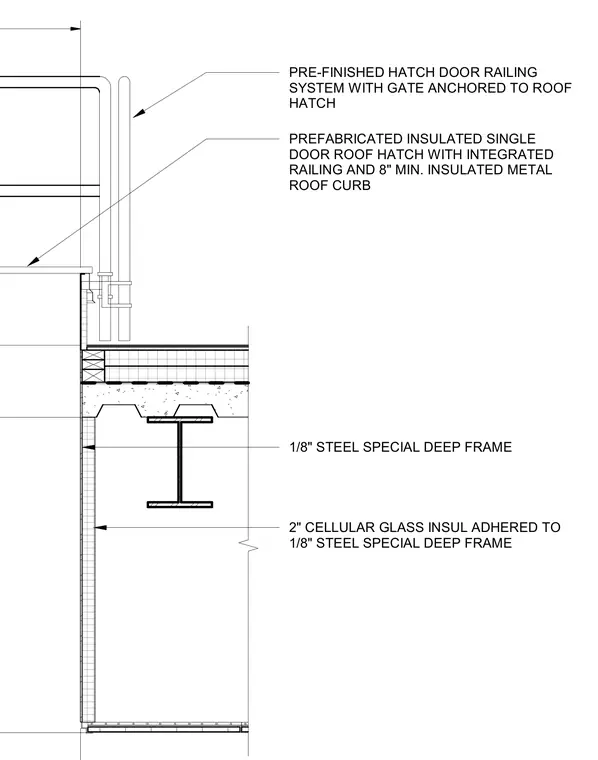

A pre-finished hatch door railing system with a gate is anchored directly to a prefabricated insulated single-door roof hatch. The assembly rests upon an eight-inch minimum insulated metal roof curb supported by structural framing. The roof structure incorporates a one-eighth-inch steel special deep frame with two inches of cellular glass insulation adhered to the frame.
PRE-FINISHED HATCH DOOR RAILING SYSTEM WITH GATE ANCHORED TO ROOF HATCH PREFABRICATED INSULATED SINGLE DOOR ROOF HATCH WITH INTEGRATED RAILING AND 8" MIN. INSULATED METAL ROOF CURB 1/8" STEEL SPECIAL DEEP FRAME 2" CELLULAR GLASS INSUL ADHERED TO 1/8" STEEL SPECIAL DEEP FRAME
