Additional number 3 bars measuring four feet in length are placed on all sides of the opening. Reinforcing shown is for each face of the wall or slab when thickness is greater than six inches. For walls or slabs six inches or less in thickness, reinforcing is placed at the center line. Reinforcement is spread to clear the opening and welded wire fabric is cut as required.

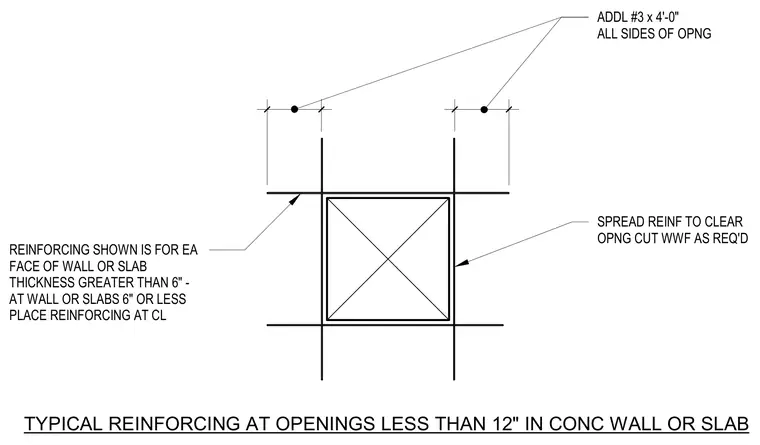

TYPICAL REINFORCING AT OPENINGS LESS THAN 12" IN CONC WALL OR SLAB REINFORCING SHOWN IS FOR EA FACE OF WALL OR SLAB THICKNESS GREATER THAN 6" - AT WALL OR SLABS 6" OR LESS PLACE REINFORCING AT CL ADDL #3 x 4'-0" ALL SIDES OF OPNG SPREAD REINF TO CLEAR OPNG CUT WWF AS REQ'D
