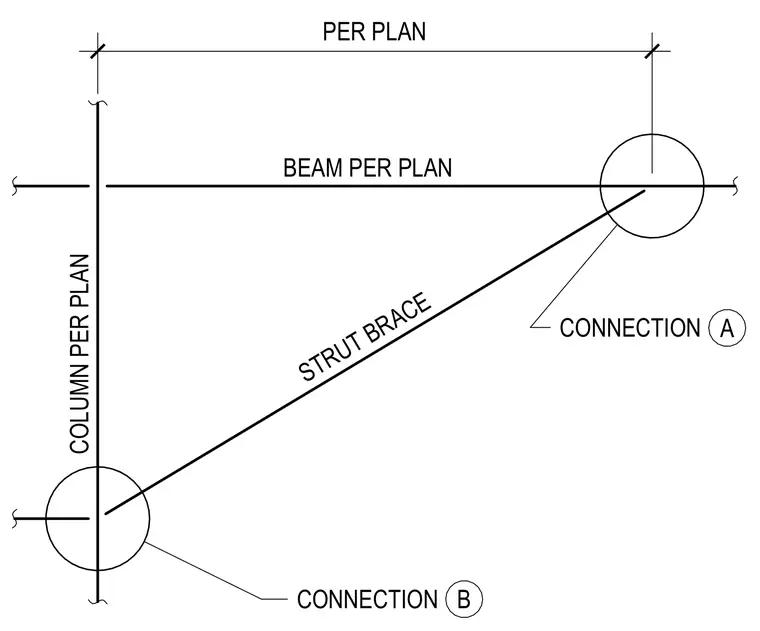

A diagonal strut brace spans between a structural column and beam, tied at each end by designated connections per plan. The upper end ties into the beam at connection A, while the lower end ties into the column at connection B. Spacing and member sizes are sized per plan.
