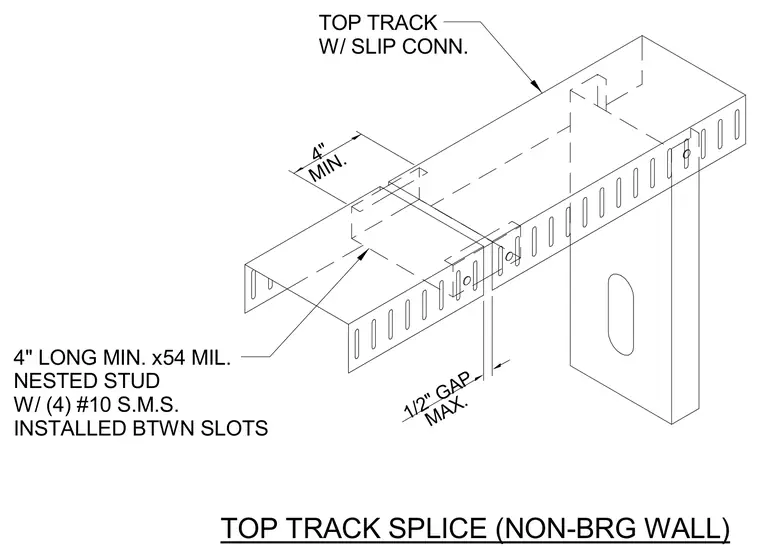

A top track with slip connection is spliced using a four-inch minimum length fifty-four mil nested stud. The nested stud is secured with four number ten sheet metal screws installed between the slots. A maximum one-half inch gap is maintained between the track sections.
4" MIN. 1/2" GAP MAX. TOP TRACK W/ SLIP CONN. 4" LONG MIN. x54 MIL. NESTED STUD W/ (4) #10 S.M.S. INSTALLED BTWN SLOTS TOP TRACK SPLICE (NON-BRG WALL)
