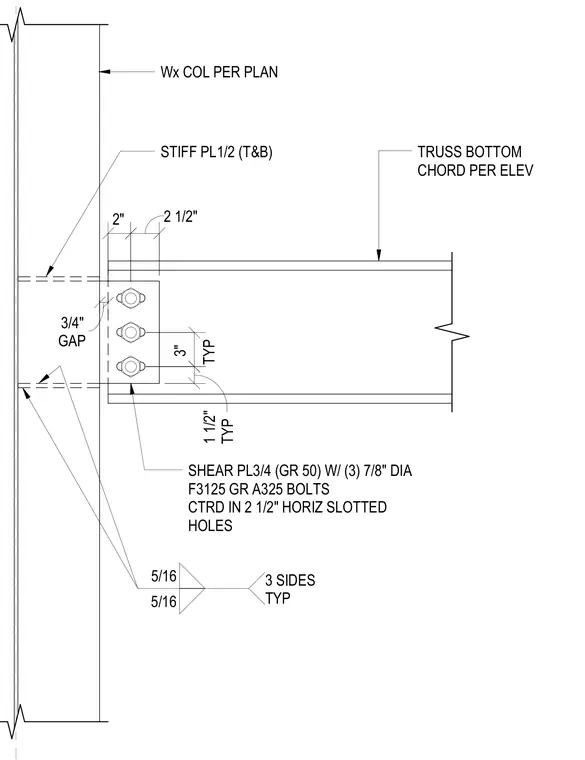

A truss bottom chord connects to the web of a wide flange column using a three-quarter-inch Grade 50 shear plate welded to the column with five-sixteenth-inch fillet welds on three sides. Three seven-eighth-inch diameter ASTM F3125 Grade A325 bolts center within two-and-a-half-inch horizontal slotted holes in the web connection to accommodate movement. One-half-inch stiffener plates weld horizontally to the top and bottom of the column web aligned with the chord. A three-quarter-inch gap separates the end of the truss bottom chord from the face of the column flange.
Wx COL PER PLAN STIFF PL1/2 (T&B) TRUSS BOTTOM CHORD PER ELEV SHEAR PL3/4 (GR 50) W/ (3) 7/8" DIA F3125 GR A325 BOLTS CTRD IN 2 1/2" HORIZ SLOTTED HOLES 1 1/2" TYP TYP 3" GAP 3/4" 2" 2 1/2" 5/16 5/16 3 SIDES TYP
