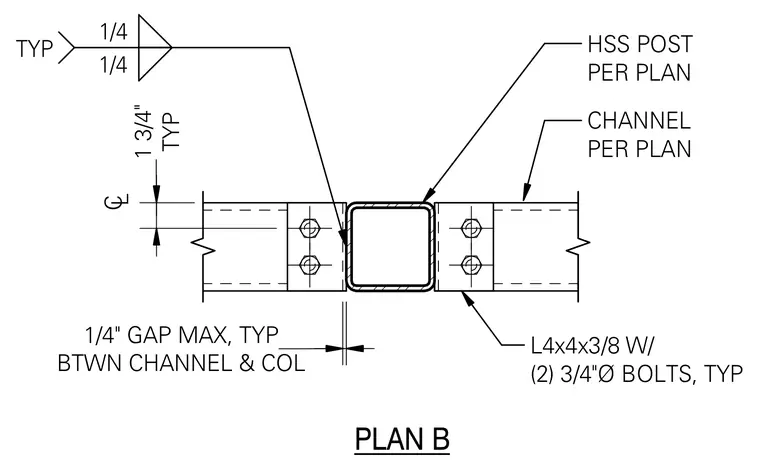

Channels frame into a hollow structural section post using L4x4x3/8 structural angles secured with two 3/4-inch diameter bolts typically. A 1/4-inch maximum gap is maintained between the channel and the hollow structural section column. A 1/4-inch fillet weld connects the assembly with a 1 3/4-inch typical offset from center.
PLAN B L4x4x3/8 W/ (2) 3/4"Ø BOLTS, TYP CHANNEL PER PLAN HSS POST PER PLAN C L TYP 1 3/4" 1/4 1/4 TYP BTWN CHANNEL & COL 1/4" GAP MAX, TYP
