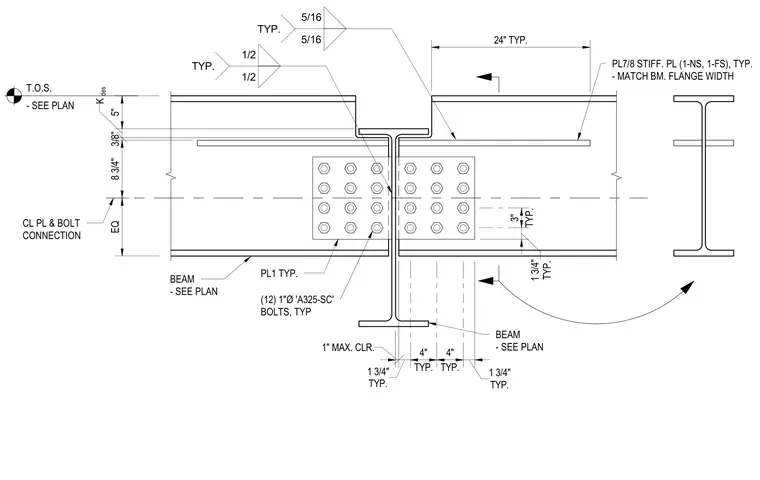

Two aligned structural steel beams connect end-to-end with a 1-inch maximum typical clearance between their flanges. A pair of connection plates are bolted across the web using twelve 1-inch diameter A325-SC slip-critical bolts on each side. Horizontal stiffener plates measuring 7/8 inches thick match the beam flange width and weld to the top flanges with 5/16-inch fillet welds. Additional plate connections attach to the webs using 1/2-inch fillet welds.
EQ 8 3/4" 3/8" K 5" des 24" TYP. 1" MAX. CLR. TYP. 1 3/4" TYP. 4" TYP. 4" TYP. 1 3/4" TYP. 1 3/4" TYP. 3" BEAM - SEE PLAN BEAM - SEE PLAN (12) 1"Ø 'A325-SC' BOLTS, TYP CL PL & BOLT CONNECTION PL1 TYP. PL7/8 STIFF. PL (1-NS, 1-FS), TYP. - MATCH BM. FLANGE WIDTH 1/2 1/2 TYP. 5/16 5/16 TYP. T.O.S. - SEE PLAN
