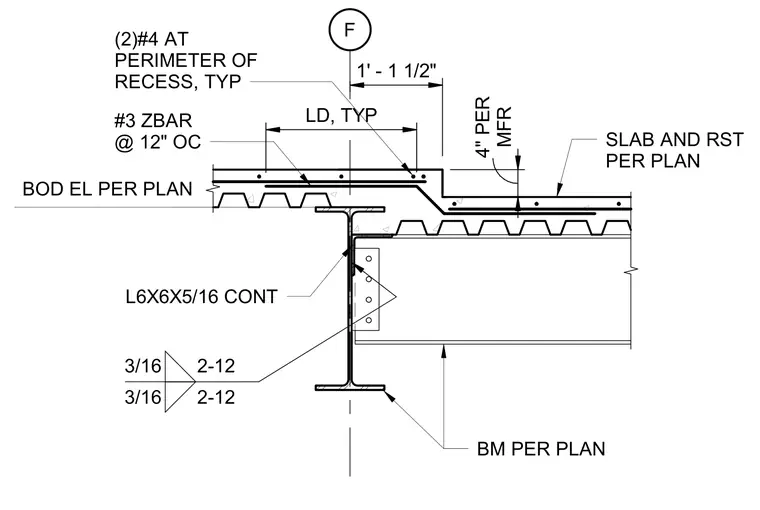

A continuous L6x6x5/16 angle is welded to the supporting steel beam web with 3/16-inch fillet welds spaced at 2-12. The concrete slab steps down with a 4-inch recess over the metal deck per plan. Reinforcing includes number 3 Z-bars at 12 inches on center and two number 4 bars at the perimeter of the recess.
F MFR 4" PER BM PER PLAN 1' - 1 1/2" L6X6X5/16 CONT 3/16 2-12 3/16 2-12 BOD EL PER PLAN 116' - 2 1/2" SLAB AND RST PER PLAN #3 ZBAR @ 12" OC LD, TYP (2)#4 AT PERIMETER OF RECESS, TYP
