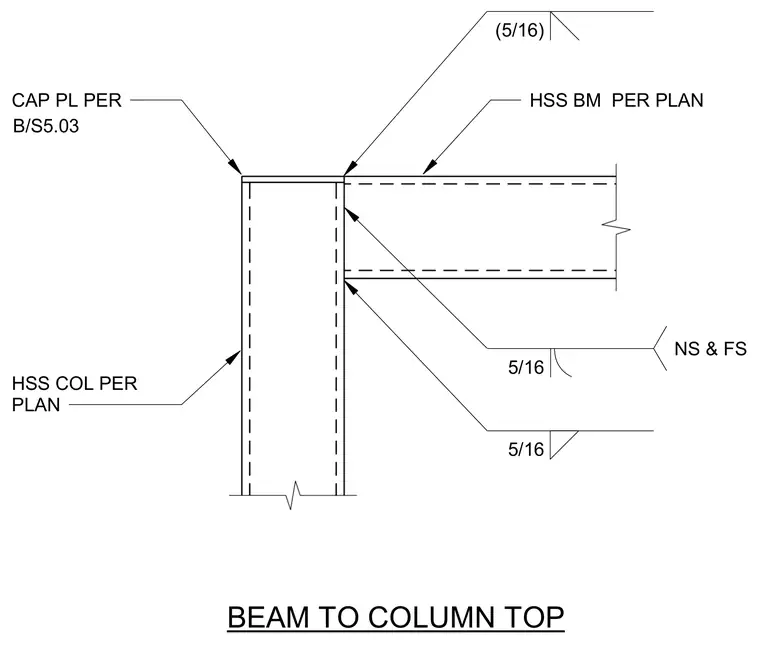

A hollow structural section beam frames into the top of a hollow structural section column. A cap plate sized per plan caps the top of the column. Five sixteenths inch fillet welds secure the connection with near side and far side designations.
5/16 NS & FS 5/16 HSS COL PER PLAN HSS BM PER PLAN CAP PL PER (5/16) BEAM TO COLUMN TOP B/S5.03
