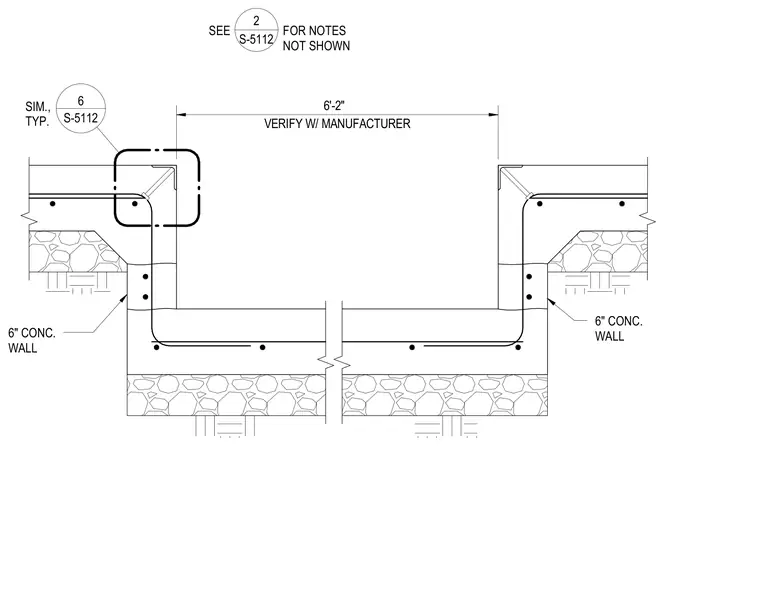

Six-inch thick concrete walls form the recessed loading dock pit, supported on compacted granular fill. The clear span dimension between the pit walls is verified with the manufacturer. Continuous reinforcing bars detail the wall and slab corners, with typical conditions referenced to sheet S-5112.
SIM., TYP. 6" CONC. WALL 6" CONC. WALL VERIFY W/ MANUFACTURER 6'-2" S-5112 6 SEE FOR NOTES NOT SHOWN 2 S-5112
