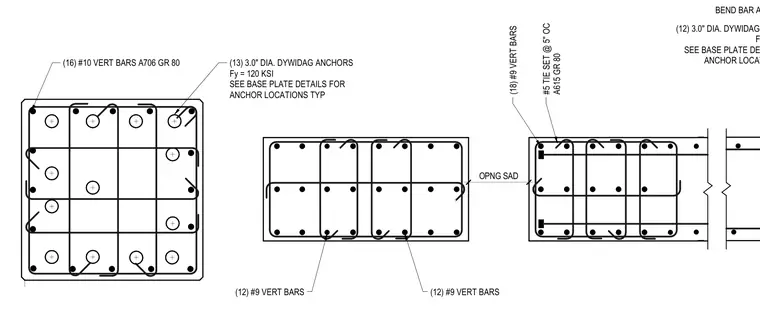

Boundary element reinforcement layout for a concrete core wall comprising ASTM A706 Grade 80 number 10 vertical bars and ASTM A615 Grade 80 number 9 vertical bars with number 5 ties set at 5 inches on center. Twelve 3.0-inch diameter Dywidag anchors with a yield strength of 120 KSI are embedded within the boundary zone per base plate location details. Reinforcing bars are bent as needed to clear anchor locations.
(12) 3.0" DIA. DYWIDAG ANCHORS Fy = 120 KSI SEE BASE PLATE DETAILS FOR ANCHOR LOCATIONS TYP BEND BAR AS NEEDED (13) 3.0" DIA. DYWIDAG ANCHORS Fy = 120 KSI SEE BASE PLATE DETAILS FOR ANCHOR LOCATIONS TYP (16) #10 VERT BARS A706 GR 80 (18) #9 VERT BARS #5 TIE SET @ 5" OC A615 GR 80 (12) #9 VERT BARS (12) #9 VERT BARS OPNG SAD
