Concrete masonry unit wall openings are reinforced with head bars, jamb bars, and sill bars anchored into the surrounding masonry and foundation. Two number five bars are provided for openings up to six feet wide, and two number six bars for openings up to eight feet wide. Trim bars require standard hooks where straight development length cannot be maintained. Vertical reinforcement extends into the foundation with a minimum twelve inch embedment, and horizontal bars lap splice according to specified development lengths.

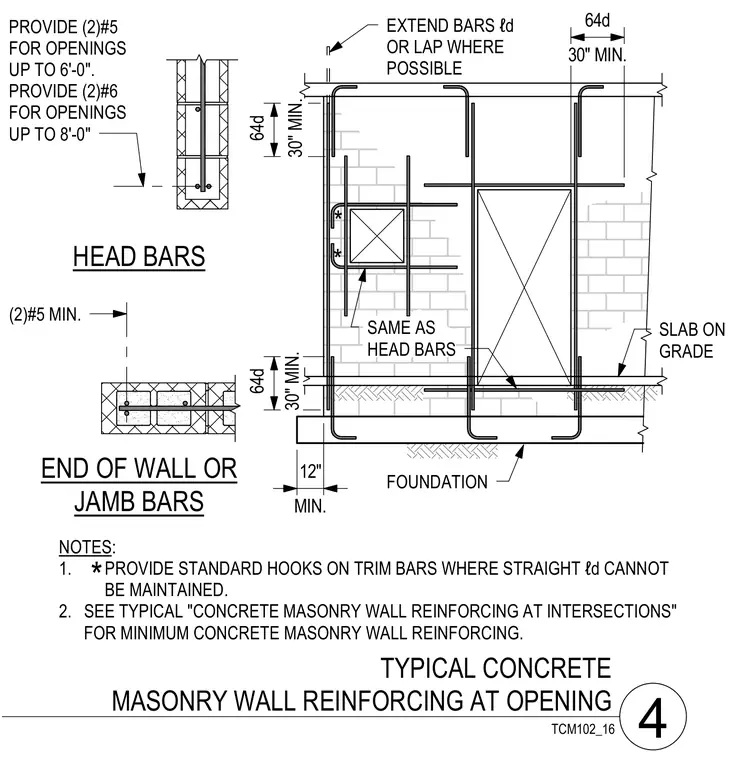

TCM102_16 HEAD BARS END OF WALL OR JAMB BARS NOTES: 1. PROVIDE STANDARD HOOKS ON TRIM BARS WHERE STRAIGHT ℓd CANNOT BE MAINTAINED. 2. SEE TYPICAL "CONCRETE MASONRY WALL REINFORCING AT INTERSECTIONS" FOR MINIMUM CONCRETE MASONRY WALL REINFORCING. SLAB ON GRADE EXTEND BARS ℓd OR LAP WHERE POSSIBLE PROVIDE (2)#5 FOR OPENINGS UP TO 6'-0". PROVIDE (2)#6 FOR OPENINGS UP TO 8'-0" SAME AS HEAD BARS (2)#5 MIN. FOUNDATION * * 30" MIN. 64d 30" MIN. 64d * MIN. 12" 30" MIN. 64d 4 TYPICAL CONCRETE MASONRY WALL REINFORCING AT OPENING
