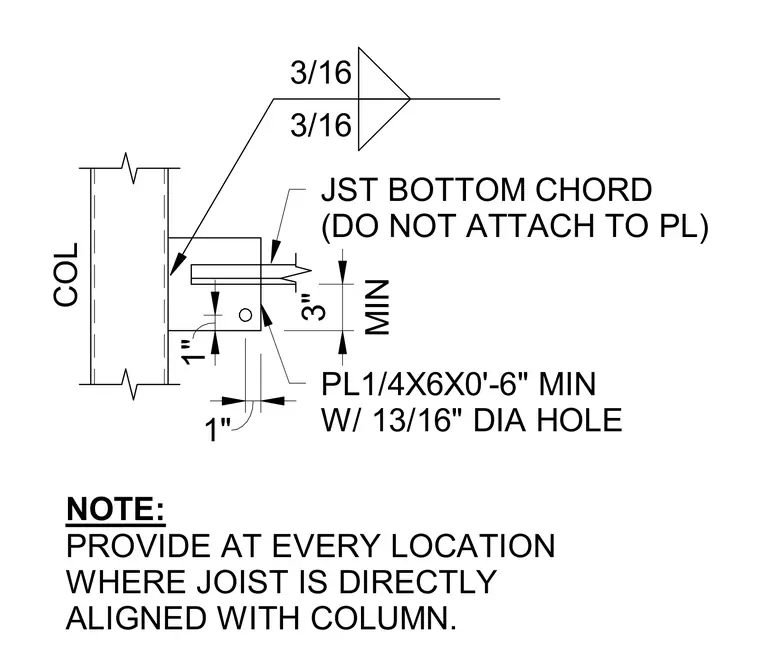

An open-web steel joist bottom chord is detailed adjacent to a steel column. A minimum one-quarter-inch by six-inch by zero-foot-six-inch plate with a thirteen-sixteenths-inch diameter hole is welded to the column with three-sixteenths-inch fillet welds. The joist bottom chord is left unattached to the plate, with a minimum three-inch clearance noted. This connection is provided at every location where a joist is directly aligned with a column.
COL JST BOTTOM CHORD (DO NOT ATTACH TO PL) PL1/4X6X0'-6" MIN W/ 13/16" DIA HOLE 3/16 3/16 1" 1" MIN 3" NOTE: PROVIDE AT EVERY LOCATION WHERE JOIST IS DIRECTLY ALIGNED WITH COLUMN.
