Structural · S-JD9ZX

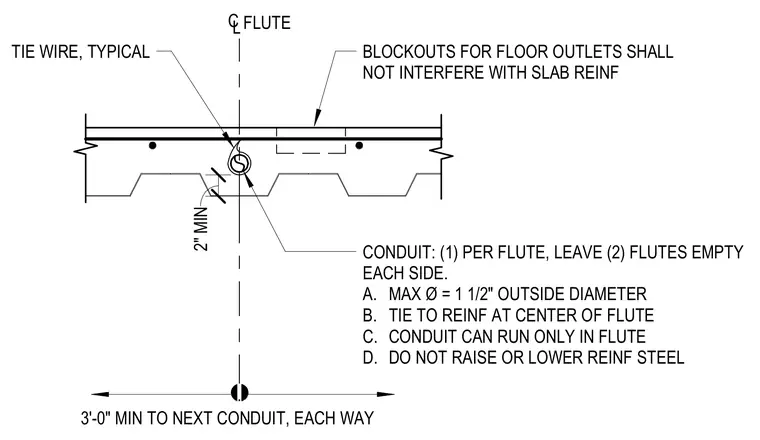

Typical Conduit in Composite Floor

Materials

Elements

About this detail

Electrical conduit runs within a single flute of a composite metal deck slab, limited to one conduit per flute with two adjacent flutes left empty on each side. The maximum outside diameter of the conduit is 1 1/2 inches, positioned at the center of the flute and secured with typical tie wire to the reinforcing steel. Conduits are restricted to running strictly within the deck flutes without raising or lowering the existing reinforcing steel. A minimum spacing of three feet is maintained to the next conduit in each direction. Floor outlet blockouts are detailed to avoid interference with the slab reinforcing steel, requiring a minimum two-inch clearance.
