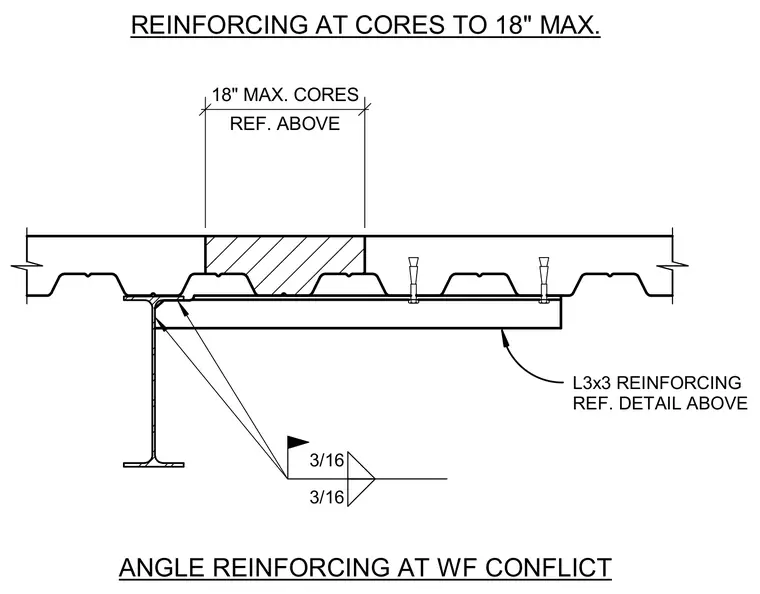

An L3x3 angle reinforcing member is welded to a wide flange beam flange to resolve a structural conflict. A three-sixteenths inch fillet weld secures the reinforcing angle. Concrete-filled cores at an eighteen-inch maximum spacing are coordinated above the steel deck. Shear studs anchor the steel deck to the supporting framing.
REINFORCING AT CORES TO 18" MAX. L3x3 REINFORCING REF. DETAIL ABOVE ANGLE REINFORCING AT WF CONFLICT REF. ABOVE 18" MAX. CORES 3/16 3/16
