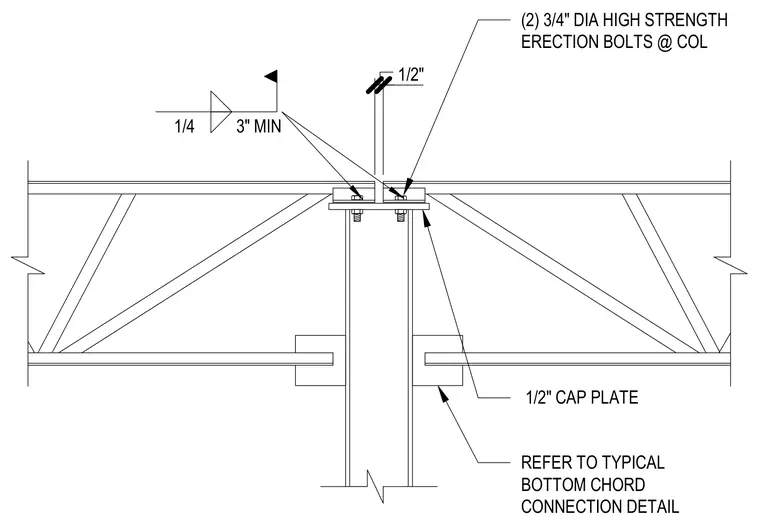

An open web steel joist bears onto a one-half-inch steel cap plate supported by a structural column. Two three-quarter-inch diameter high-strength erection bolts secure the joist top chords at the column centerline. A one-quarter-inch fillet weld with a three-inch minimum length connects the assembly components. The bottom chord connection references a separate typical detail for alignment and attachment.
1/2" (2) 3/4" DIA HIGH STRENGTH ERECTION BOLTS @ COL 1/2" CAP PLATE REFER TO TYPICAL BOTTOM CHORD CONNECTION DETAIL 1/4 3" MIN
