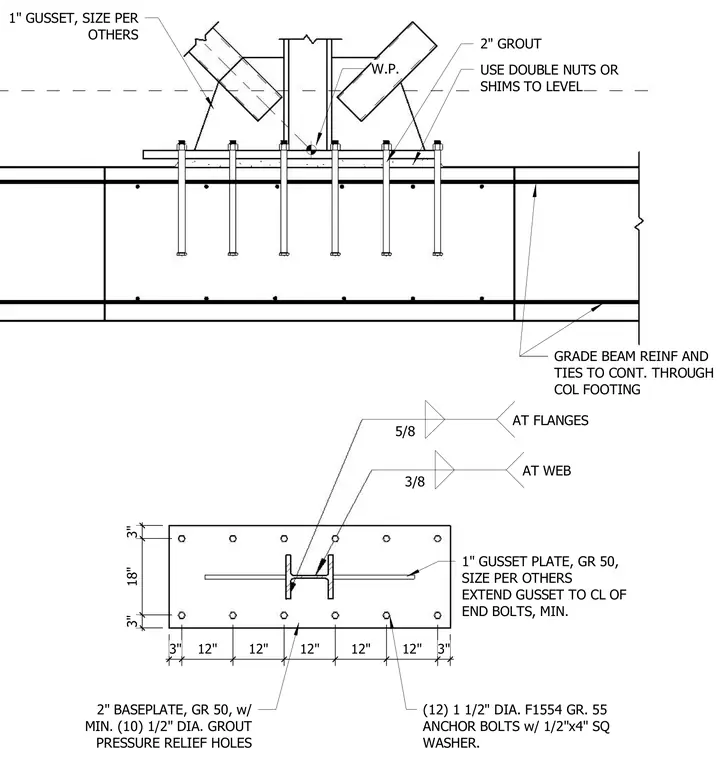

An interior structural steel column base assembly bears upon a reinforced concrete grade beam with grade beam reinforcement and ties continuing through the column footing. The assembly features a two-inch thick Grade 50 base plate containing a minimum of ten one-half inch diameter grout pressure relief holes. Twelve one-and-one-half inch diameter ASTM F1554 Grade 55 anchor bolts with one-half by four-inch square washers secure the base plate. Leveling is achieved using double nuts or shims beneath a two-inch grout layer. One-inch Grade 50 gusset plates are welded to the column flanges with five-eighths inch fillet welds and to the web with three-eighths inch fillet welds, extending to the centerline of the end bolts.
W.P. GRADE BEAM REINF AND TIES TO CONT. THROUGH COL FOOTING 2" BASEPLATE, GR 50, w/ MIN. (10) 1/2" DIA. GROUT PRESSURE RELIEF HOLES (12) 1 1/2" DIA. F1554 GR. 55 ANCHOR BOLTS w/ 1/2"x4" SQ WASHER. 1" GUSSET PLATE, GR 50, SIZE PER OTHERS EXTEND GUSSET TO CL OF END BOLTS, MIN. 5/8 AT FLANGES 3/8 AT WEB 3" 12" 12" 12" 12" 12" 3" 1" GUSSET, SIZE PER OTHERS 2" GROUT USE DOUBLE NUTS OR SHIMS TO LEVEL 3" 18" 3"
