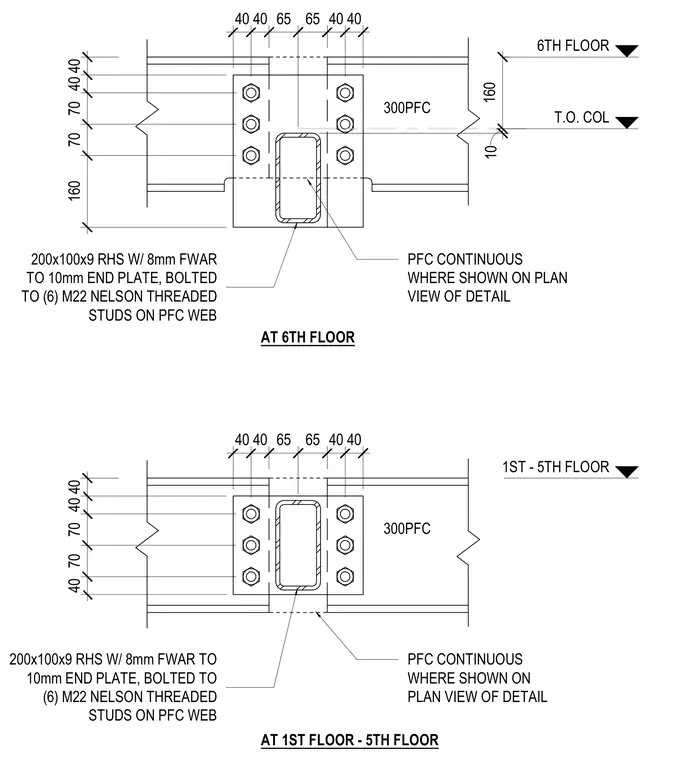

A 200x100x9 rectangular hollow section column connects to a continuous parallel flange channel web using a 10 millimeter end plate welded with an 8 millimeter fillet weld and six M22 Nelson threaded studs. The connection details differ between the first through fifth floors and the sixth floor according to the indicated top of column elevations and continuous parallel flange channel placement.
40 40 65 65 40 40 40 70 70 40 40 PFC CONTINUOUS WHERE SHOWN ON PLAN VIEW OF DETAIL 1ST - 5TH FLOOR 300PFC 200x100x9 RHS W/ 8mm FWAR TO 10mm END PLATE, BOLTED TO (6) M22 NELSON THREADED STUDS ON PFC WEB 40 40 65 65 40 40 160 70 70 40 40 PFC CONTINUOUS WHERE SHOWN ON PLAN VIEW OF DETAIL 6TH FLOOR 300PFC 200x100x9 RHS W/ 8mm FWAR TO 10mm END PLATE, BOLTED TO (6) M22 NELSON THREADED STUDS ON PFC WEB 10 160 T.O. COL AT 6TH FLOOR AT 1ST FLOOR - 5TH FLOOR
