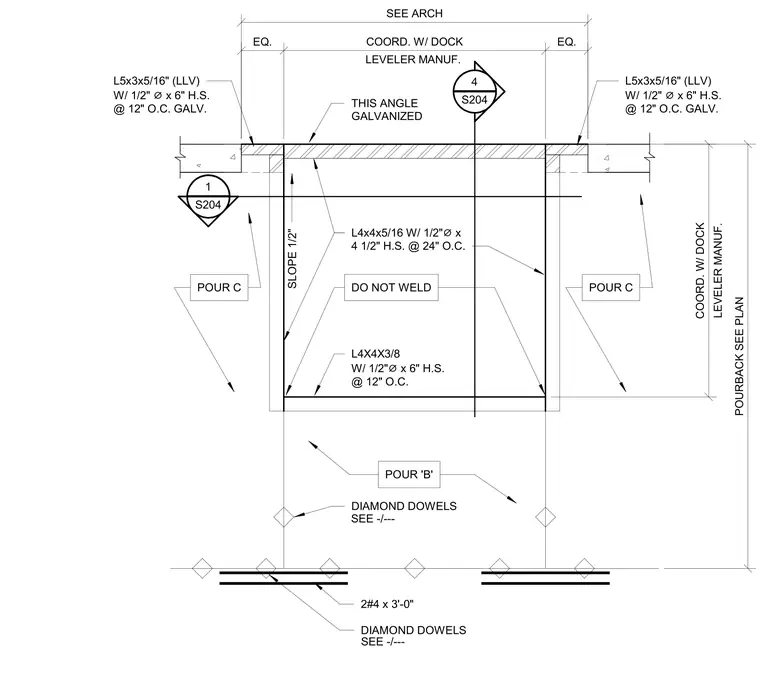

The dock leveler pit perimeter is framed with galvanized L5x3x5/16 inch angles anchored by 1/2 inch diameter by 6 inch headed studs at 12 inches on center. The interior pit edge utilizes an L4x4x5/16 inch angle with 1/2 inch diameter by 4 1/2 inch headed studs at 24 inches on center, while the base of the pit wall incorporates an L4x4x3/8 inch angle with 1/2 inch diameter by 6 inch headed studs at 12 inches on center. The vertical pit face is left unwelded to the angle. The slab-on-grade transition utilizes diamond dowels for load transfer, supplemented by two number 4 reinforcing bars at 3 feet 0 inches long. All dock leveler dimensions and coordination must be verified with the equipment manufacturer.
Text on the drawing
4 S204 ____ 1 S204 ____ SEE -/--- SEE -/--- L4X4X3/8 W/ 1/2" ⌀ x 6" H.S. @ 12" O.C. L4x4x5/16 W/ 1/2" ⌀ x 4 1/2" H.S. @ 24" O.C. POUR 'B' THIS ANGLE GALVANIZED L5x3x5/16" (LLV) W/ 1/2" ⌀ x 6" H.S. @ 12" O.C. GALV. DO NOT WELD L5x3x5/16" (LLV) W/ 1/2" ⌀ x 6" H.S. @ 12" O.C. GALV. DIAMOND DOWELS 2#4 x 3'-0" DIAMOND DOWELS POURBACK SEE PLAN LEVELER MANUF. COORD. W/ DOCK EQ. LEVELER MANUF. COORD. W/ DOCK EQ. SLOPE 1/2" POUR C POUR C
