A concrete housekeeping pad sits atop a standard slab on grade with a maximum height of eight inches. The slab is reinforced with number four bars at twelve inches on center each way, transitioning into the pad with a typical lap splice. The perimeter of the pad features number four bars at twenty-four inches on center. Contractors may optionally drill and epoxy dowels with four inches of embedment.

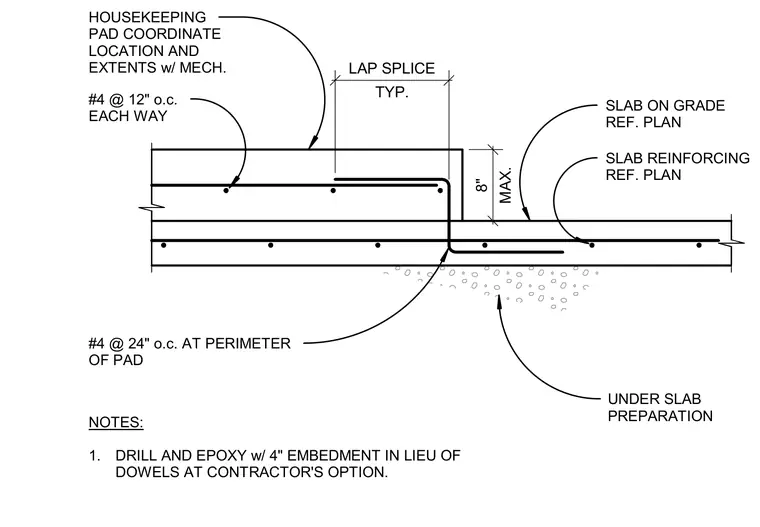

SLAB REINFORCING REF. PLAN UNDER SLAB PREPARATION MAX. 8" SLAB ON GRADE REF. PLAN #4 @ 12" o.c. EACH WAY HOUSEKEEPING PAD COORDINATE LOCATION AND EXTENTS w/ MECH. #4 @ 24" o.c. AT PERIMETER OF PAD NOTES: 1. DRILL AND EPOXY w/ 4" EMBEDMENT IN LIEU OF DOWELS AT CONTRACTOR'S OPTION. TYP. LAP SPLICE
