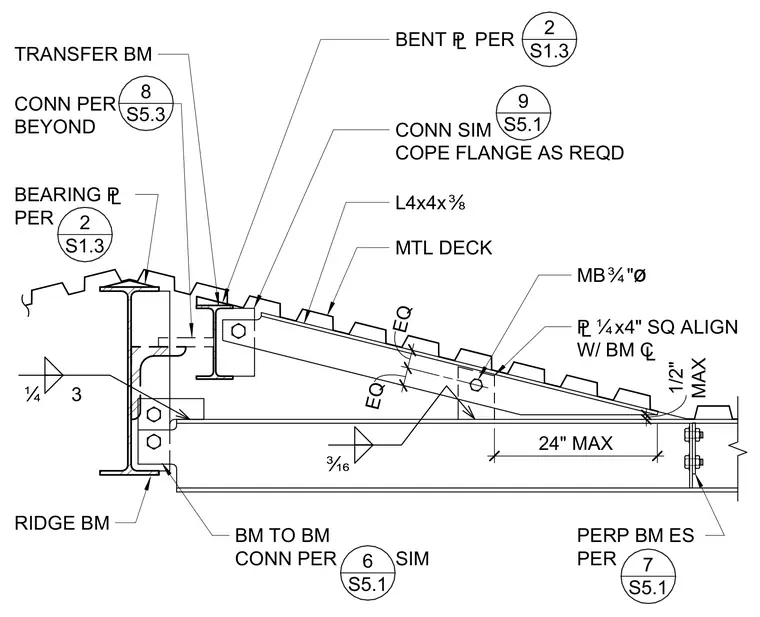

Sloped roof framing and ridge beam connection utilizing a transfer beam, bearing plate, and bent plate configurations. A metal deck bears across the assembly with an L4x4x3/8 angle connection and flange copes as required. The connection incorporates three-quarter-inch diameter machine bolts and a one-quarter-inch by four-inch square plate aligned with the beam centerline. Fillet welds of one-quarter-inch and three-sixteenth-inch sizes secure the steel components.
EQ EQ MAX 1/2" £Ëx4" SQ ALIGN W/ BM ¢ MBÓ"ø PERP BM ES PER 7 S5.1 RIDGE BM MTL DECK L4x4xÍ CONN SIM COPE FLANGE AS REQD 9 S5.1 BEARING £ PER 2 S1.3 Ê BM TO BM CONN PER SIM 6 S5.1 TRANSFER BM BENT £ PER 2 S1.3 24" MAX CONN PER BEYOND 8 S5.3 Ë 3
