A glulam post connects to a concrete mat slab using a concealed steel stub base and standoff plate. The steel base consists of a hollow structural section stub welded to a three-eighths by eight-inch square base plate with a quarter-inch fillet weld. Four five-eighths-inch diameter anchor bolts embed twelve inches into the mat slab to secure the base plate. The glulam post fits over the steel stub per plan and attaches with through-bolts.

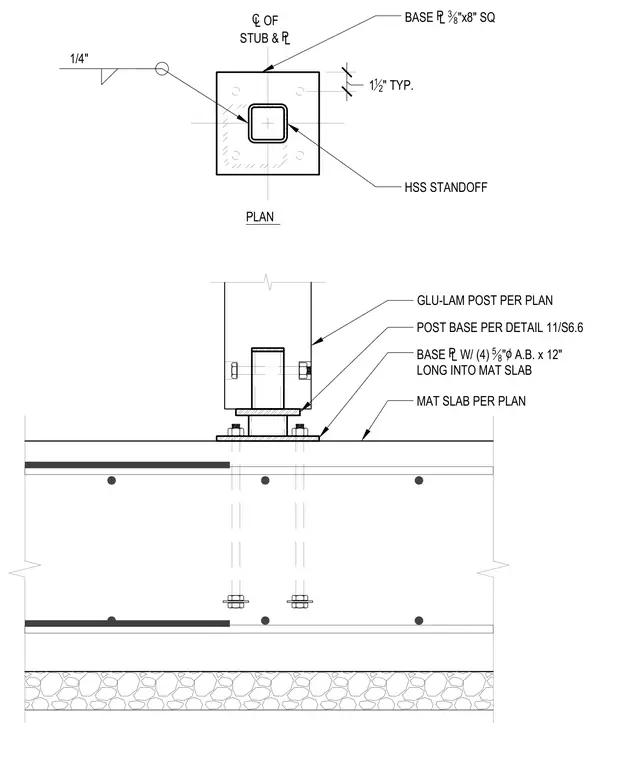

POST BASE PER DETAIL 11/S6.6 PLAN MAT SLAB PER PLAN BASE { W/ (4) 5 8 "` A.B. x 12" LONG INTO MAT SLAB GLU-LAM POST PER PLAN 1 1 2 " TYP. HSS STANDOFF BASE { 3 8 "x8" SQ 1/4" TYP. } OF STUB & {
