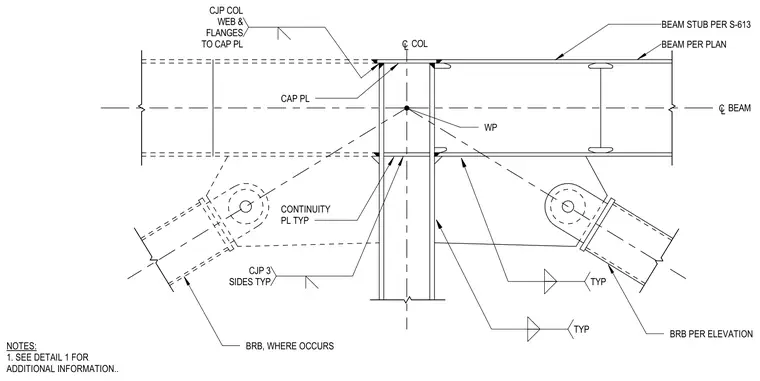

The buckling-restrained brace connects to the structural steel column flange at a designated work point below the beam intersection. A cap plate is welded to the column top using complete joint penetration welds across the web and flanges, while typical continuity plates are provided at the beam and brace intersections. A beam stub and continuous beam frame into the column assembly, with additional brace segments occurring per the elevation drawings. Complete joint penetration welds on three sides secure the connection components typically.
TYP TYP BRB, WHERE OCCURS BRB PER ELEVATION WP CJP COL WEB & FLANGES TO CAP PL CJP 3 SIDES TYP CONTINUITY PL TYP CAP PL BEAM STUB PER S-613 BEAM PER PLAN NOTES: 1. SEE DETAIL 1 FOR ADDITIONAL INFORMATION.. C L BEAM C L COL
