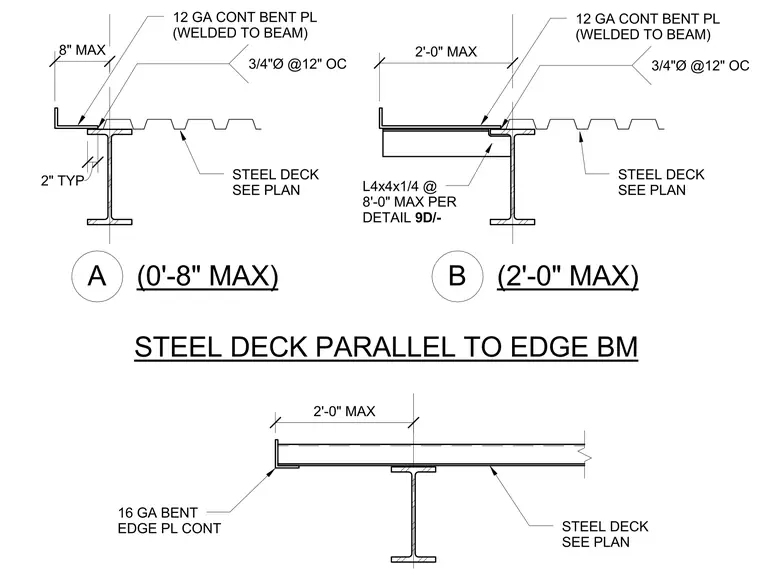

The steel deck runs parallel to the edge beam with varying overhang configurations up to eight inches and two feet maximum. Twelve-gauge continuous bent plates are welded to the top flange of the steel beam. Three-quarter-inch diameter fasteners are spaced at twelve inches on center. An angle profile measuring four by four by one-quarter inches is spaced at eight feet maximum per detail nine dash. A sixteen-gauge continuous bent edge plate finishes the perimeter.
STEEL DECK PARALLEL TO EDGE BM 16 GA BENT EDGE PL CONT STEEL DECK SEE PLAN STEEL DECK SEE PLAN 12 GA CONT BENT PL (WELDED TO BEAM) 8" MAX 2'-0" MAX 3/4"Ø @12" OC STEEL DECK SEE PLAN 12 GA CONT BENT PL (WELDED TO BEAM) 2'-0" MAX L4x4x1/4 @ 8'-0" MAX PER DETAIL 9D/- 3/4"Ø @12" OC (0'-8" MAX) A (2'-0" MAX) B 2" TYP
