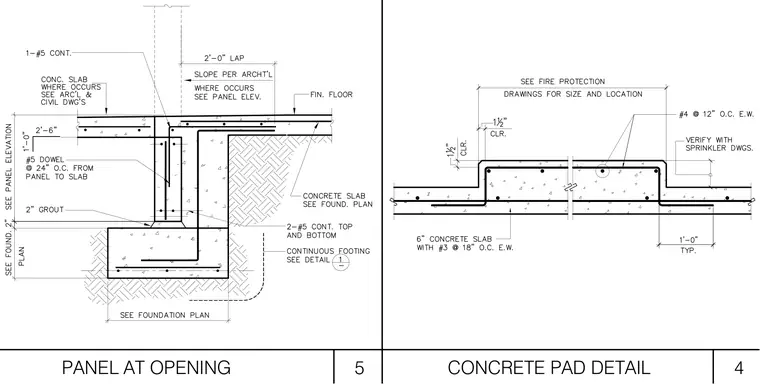

A reinforced concrete wall panel connects to a continuous concrete footing with a two-inch grout bed, anchored by number five dowels spaced at twenty-four inches on center from the panel to the slab. The concrete slab bears on the assembly with a one-foot-zero-inch vertical drop, featuring one number five continuous rebar and a two-foot-zero-inch lap. A separate concrete pad detail shows a six-inch concrete slab reinforced with number three bars at eighteen inches on center each way, featuring a recessed transition zone with number four bars at twelve inches on center each way and one-and-a-half-inch clearance.
